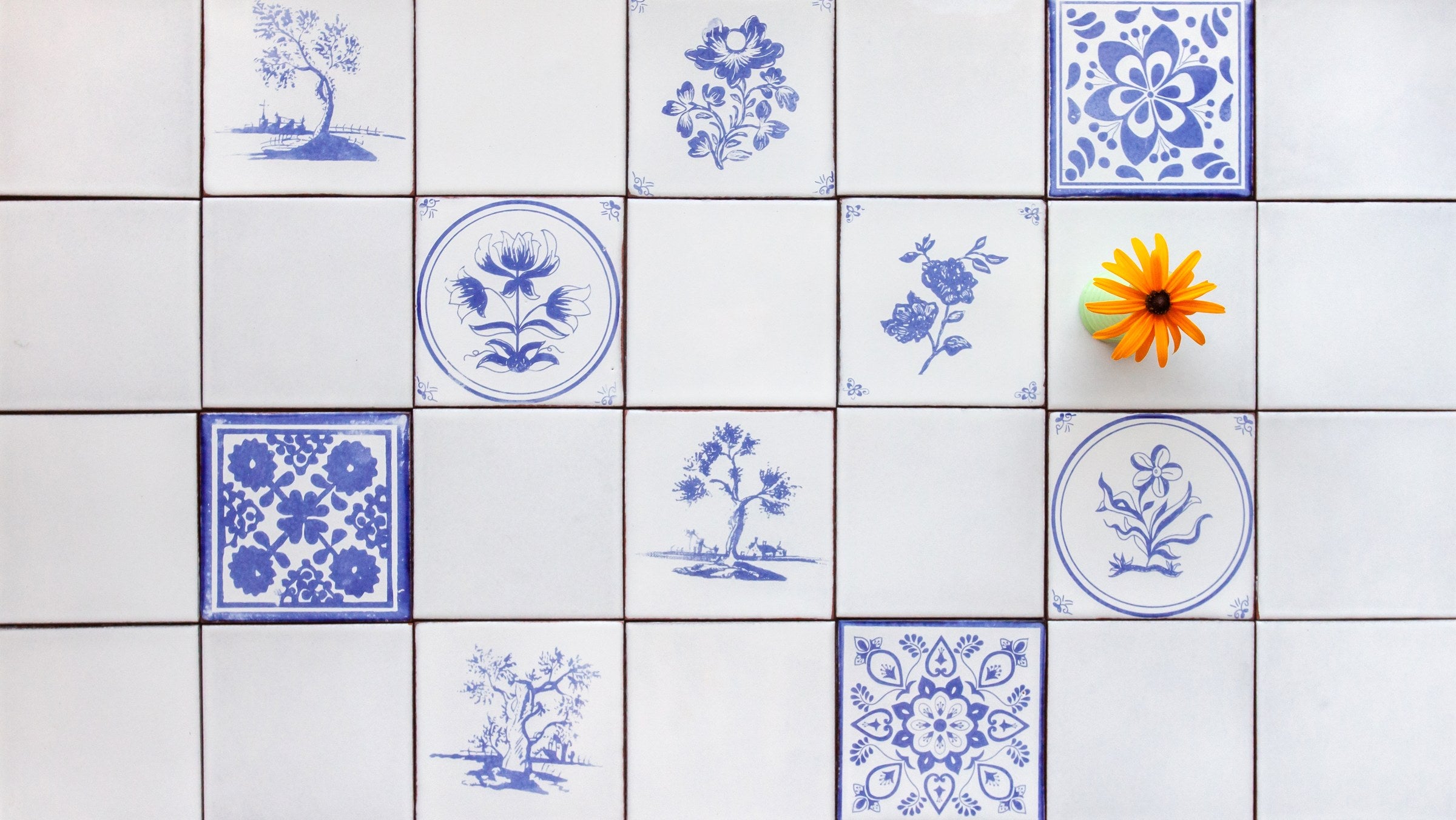

A wall of white Peninsula tile with blue drawings scattered through it, and a single orange flower in a small vase

Pattern series, screened

Peninsula Collection,a whole menagerie

Peninsula holds its field back so the drawing can carry the room.

Body
Red clay, 1/2 inch
Decos
Thirty four
Glazes
Two
Made in
Gardena, California

Field and deco

The field is the Studio field

Peninsula is the Studio field in two glazes, with Peninsula drawings set into it.

Blue Satin and Pure White, and nothing else. The field runs 6x6, 4x4, 3x3 and 3x6, all on a red body at half an inch.

The decos come at 6x6 and 4x4 and are sold by the piece, so you order the number of drawings you are going to set. Two murals sit alongside the thirty four, sold as complete sets rather than by the piece.

Interior walls and floors. Good in wet conditions. Ask us before you put it anywhere else.

The field

Blue Satin and Pure White

The field is made in these two and nothing else, at 6x6, 4x4, 3x3 and 3x6. Both can be ordered as a chip, which is the only honest way to judge a glaze.

  • The body Red clay, half an inch, on the same Monrovia red body bisque as the rest of the ceramic line.
  • The sizes 6x6, 4x4, 3x3 and 3x6 in the field. Decos at 6x6 and 4x4.
  • The color No screen shows a glaze truthfully. The chip is the only way to judge one.

Sizes and packing

Four in the field, two in the decos

The field is the Studio field, at 6x6, 4x4, 3x3 and 3x6. The decos are made at 6x6 and 4x4 only, and sold by the piece.

Line drawing of the three square sizes nested inside one another, from 6x6 down to 3x3

The three squares, to scale

6x6

Actual size
6 by 6 inches
Pieces per sq ft
4
Weight per piece
1 lb
Packaging
26 per box, 30 boxes per pallet

4x4

Actual size
3 7/8 by 3 7/8 inches
Pieces per sq ft
9
Weight per piece
0.5 lb
Packaging
88 per box, 45 boxes per pallet

3x3

Actual size
2 7/8 by 2 7/8 inches
Pieces per sq ft
16
Weight per piece
0.25 lb
Packaging
120 per box, 45 boxes per pallet
Line drawing of the 3x6, the one rectangle in the field

The one rectangle

3x6

Actual size
2 7/8 by 6 inches
Pieces per sq ft
8
Weight per piece
0.5 lb
Packaging
64 per box, 30 boxes per pallet

The decos are sold by the piece. Two sizes rather than four, 6x6 and 4x4, at the same actual dimensions and the same weights as the field tiles they sit beside.

Coverage is based on a 1/4 inch grout joint.

The Studio trim fits it. Because the field is the Studio field, the Studio accessories run with it: surface bullnose, cove base, quarter round, V cap, mouldings, chair rails and liners. Ask us for the pieces your job needs.

The deco library

Thirty four, by the piece

The decos are the collection: fruit and tulips, a lobster, a seahorse, a lighthouse, a crab, a shell, a bear, a horse, a rooster, a deer, a butterfly.

Twenty five at 6x6 and nine at 4x4. Four of the designs are made in both sizes, which is why the size is part of the name.

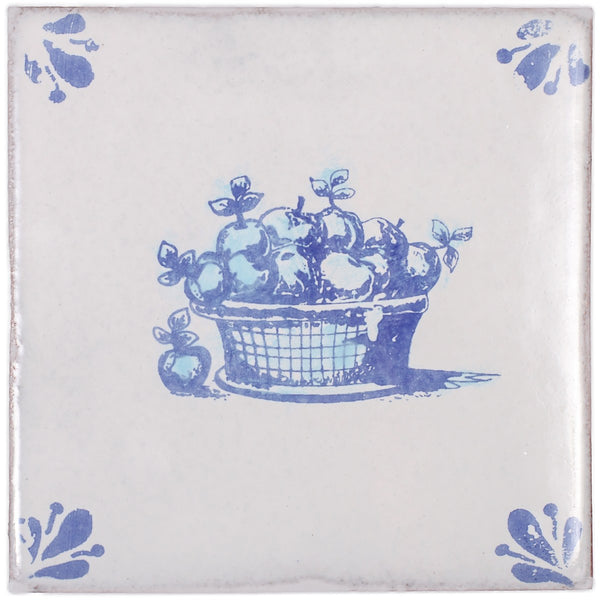

  • Peninsula 6x6 PD-FRUIT1, the drawing on one tile6x6 PD-FRUIT1

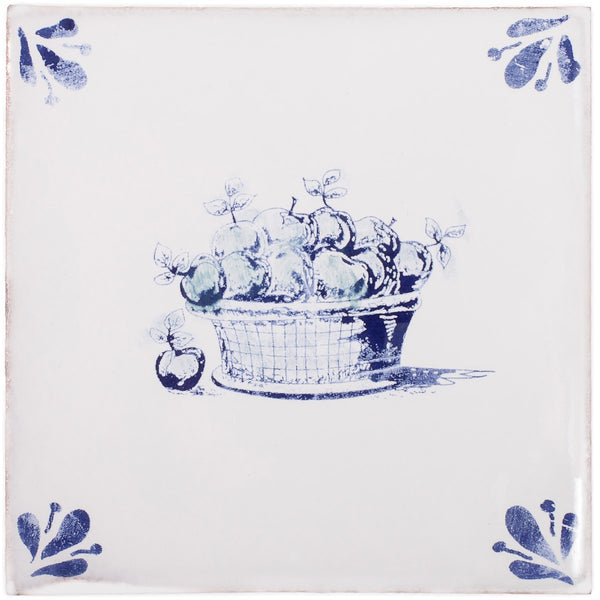

  • Peninsula 6x6 PD-FRUIT2, the drawing on one tile6x6 PD-FRUIT2

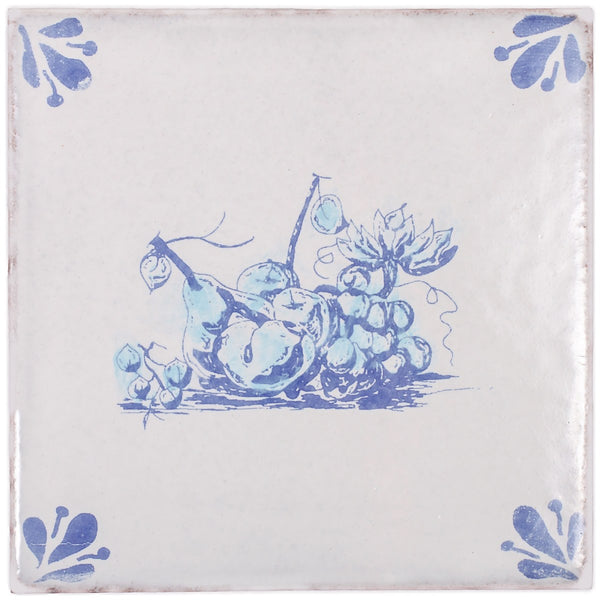

  • Peninsula 6x6 PD-FRUIT3, the drawing on one tile6x6 PD-FRUIT3

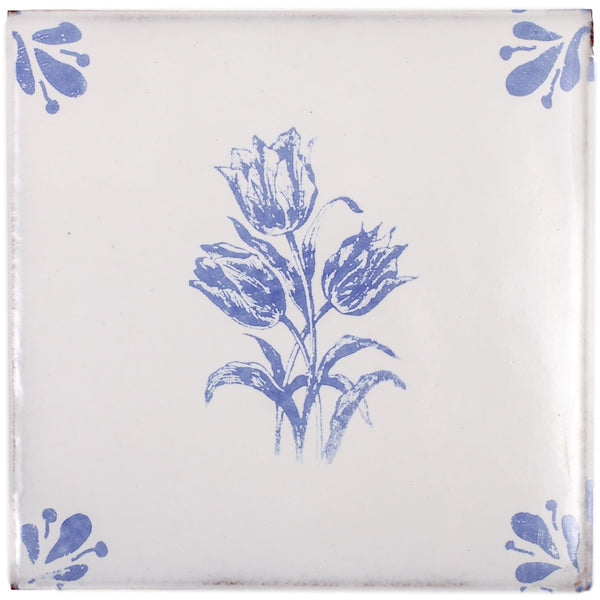

  • Peninsula 6x6 PD-TULIPS, the drawing on one tile6x6 PD-TULIPS

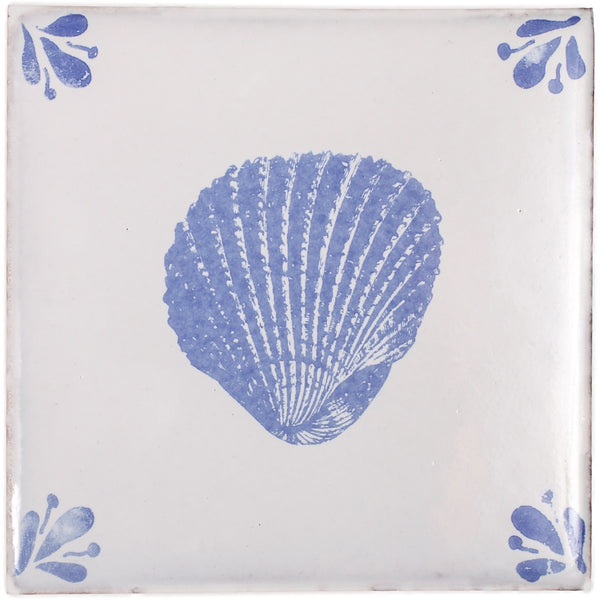

  • Peninsula 6x6 PD-CASCARA, the drawing on one tile6x6 PD-CASCARA

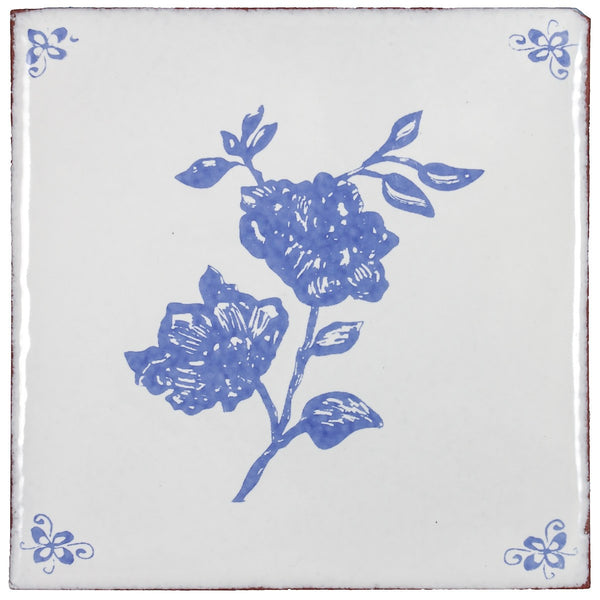

  • Peninsula 6x6 PD-FLOWER 2, the drawing on one tile6x6 PD-FLOWER 2

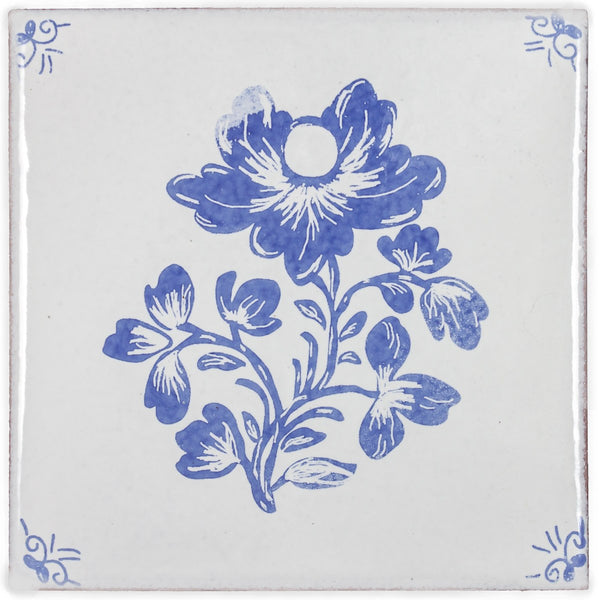

  • Peninsula 6x6 PD-FLOWER 3, the drawing on one tile6x6 PD-FLOWER 3

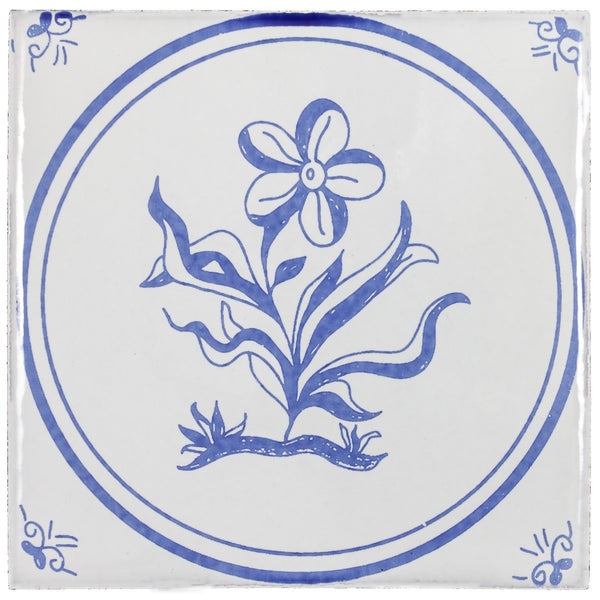

  • Peninsula 6x6 PD-FLOWER 4, the drawing on one tile6x6 PD-FLOWER 4

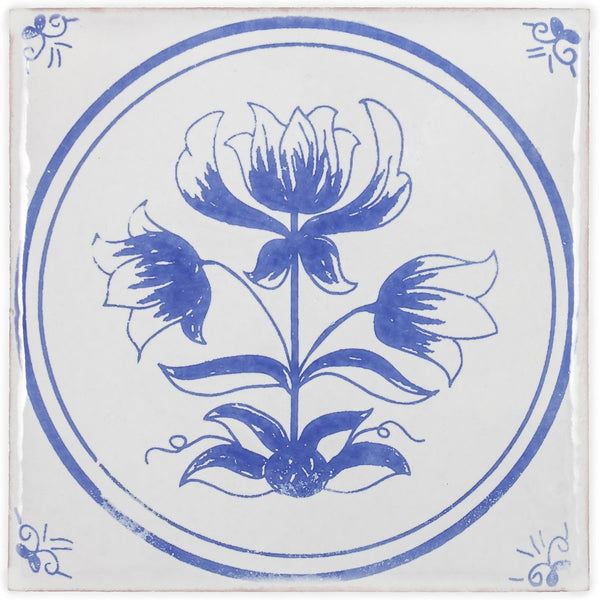

  • Peninsula 6x6 PD-FLOWER 5, the drawing on one tile6x6 PD-FLOWER 5

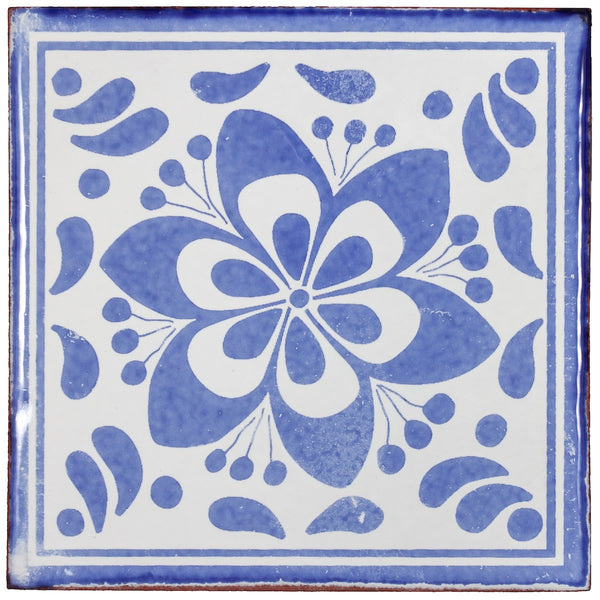

  • Peninsula 6x6 PD-FLOWER 6, the drawing on one tile6x6 PD-FLOWER 6

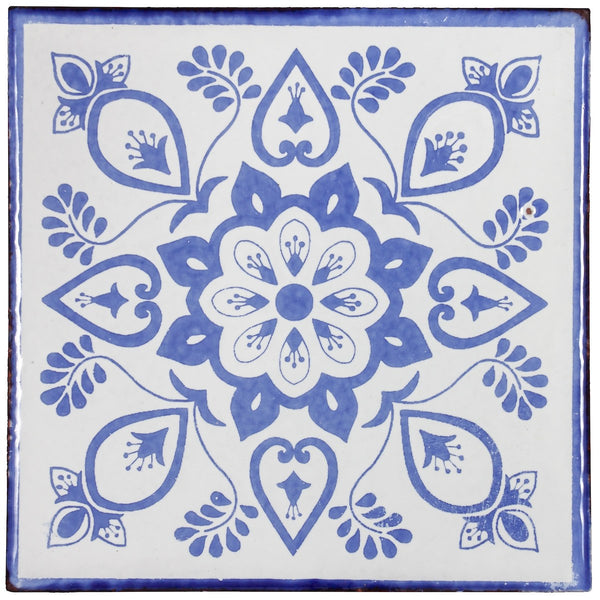

  • Peninsula 6x6 PD-FLOWER 7, the drawing on one tile6x6 PD-FLOWER 7

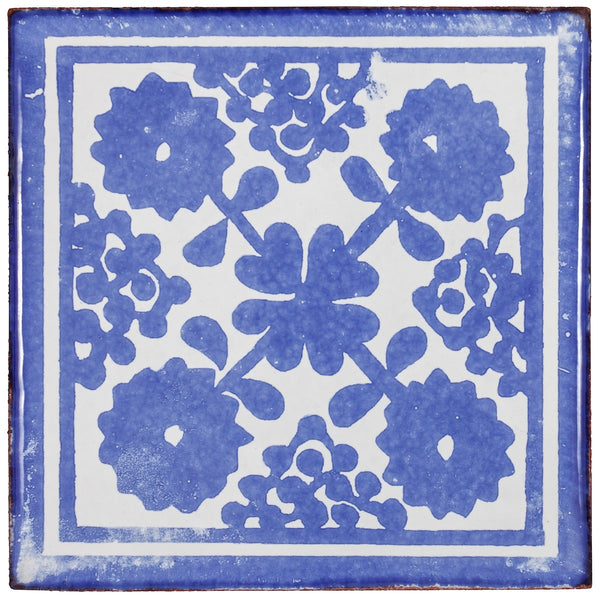

  • Peninsula 6x6 PD-FLOWER 8, the drawing on one tile6x6 PD-FLOWER 8

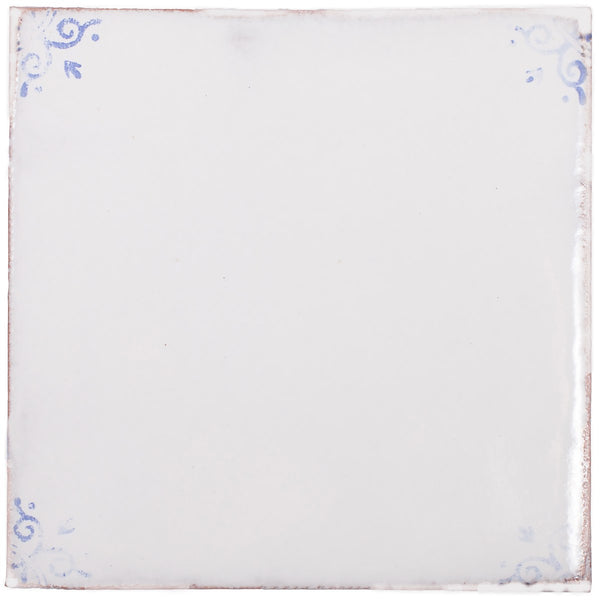

  • Peninsula 6x6 PD100, the drawing on one tile6x6 PD100

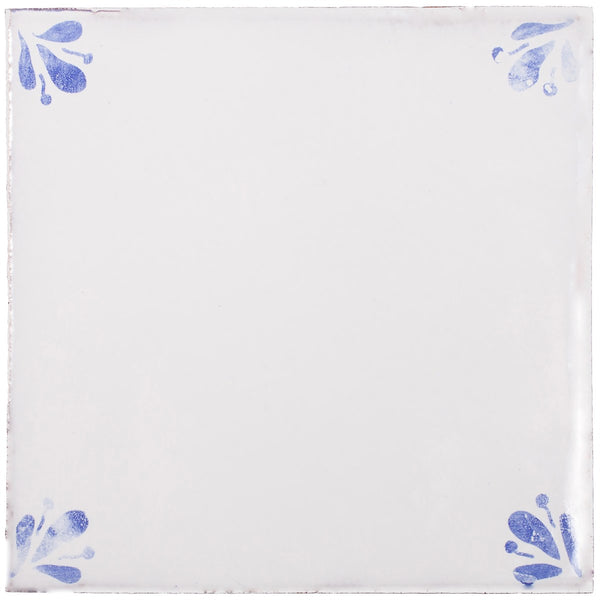

  • Peninsula 6x6 PD101, the drawing on one tile6x6 PD101

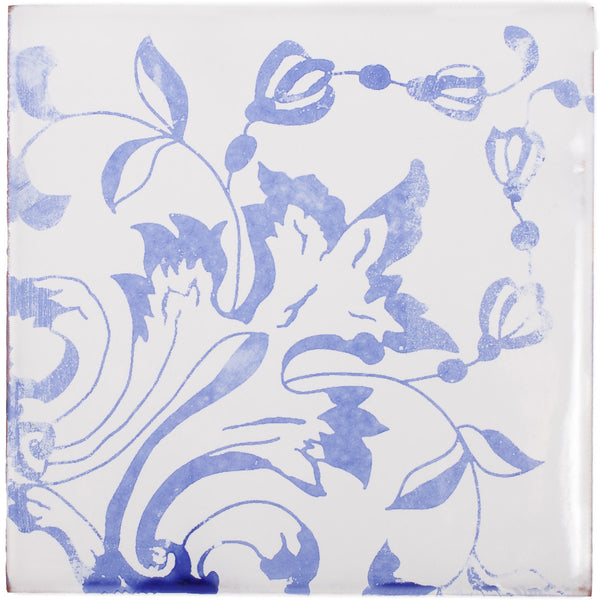

  • Peninsula 6x6 PQ-FLOWER, the drawing on one tile6x6 PQ-FLOWER

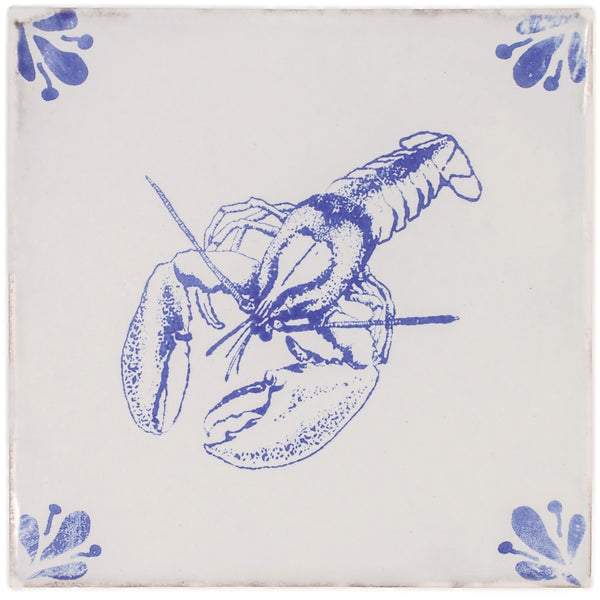

  • Peninsula 6x6 PD-LOBSTER, the drawing on one tile6x6 PD-LOBSTER

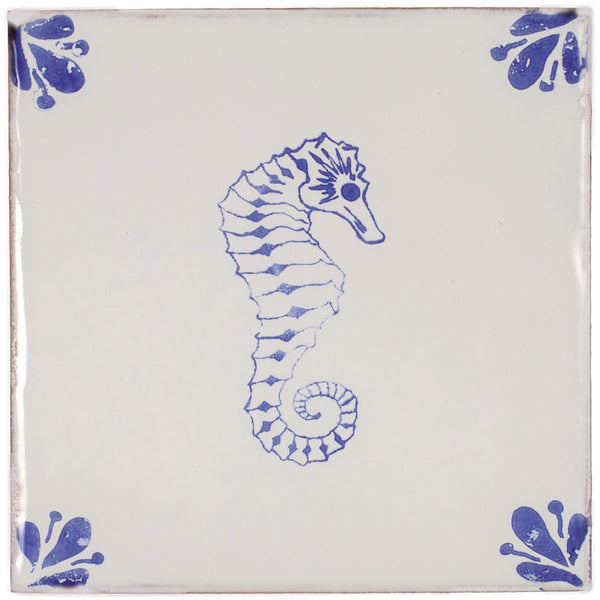

  • Peninsula 6x6 PD-SEAHORSE, the drawing on one tile6x6 PD-SEAHORSE

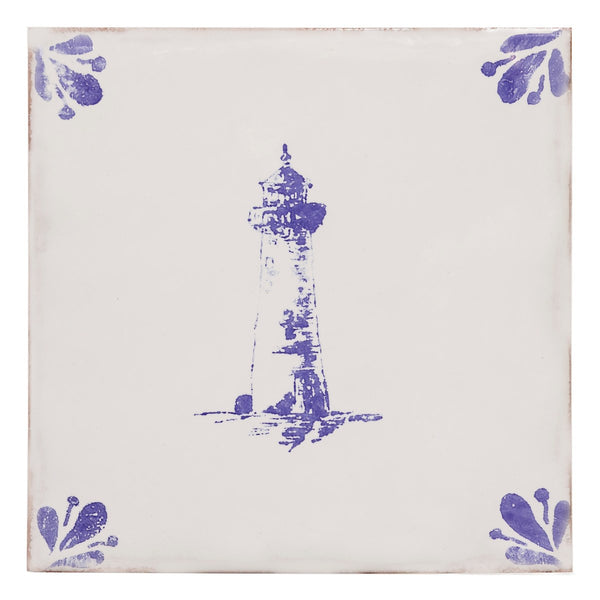

  • Peninsula 6x6 PD-LIGHTHOUSE, the drawing on one tile6x6 PD-LIGHTHOUSE

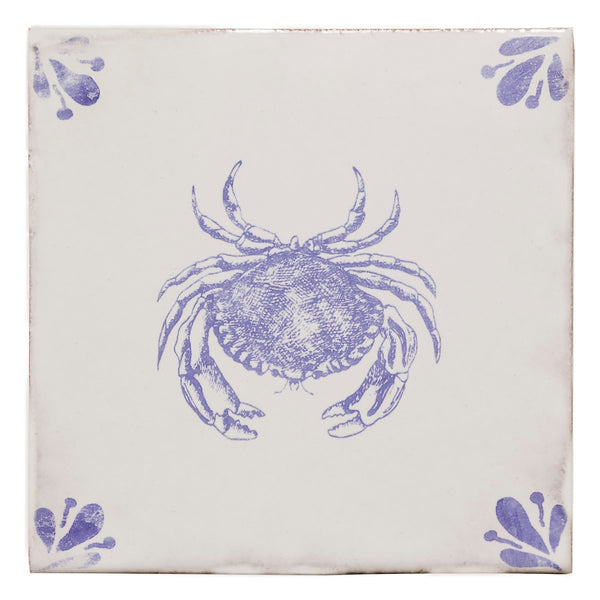

  • Peninsula 6x6 PD-CRAB, the drawing on one tile6x6 PD-CRAB

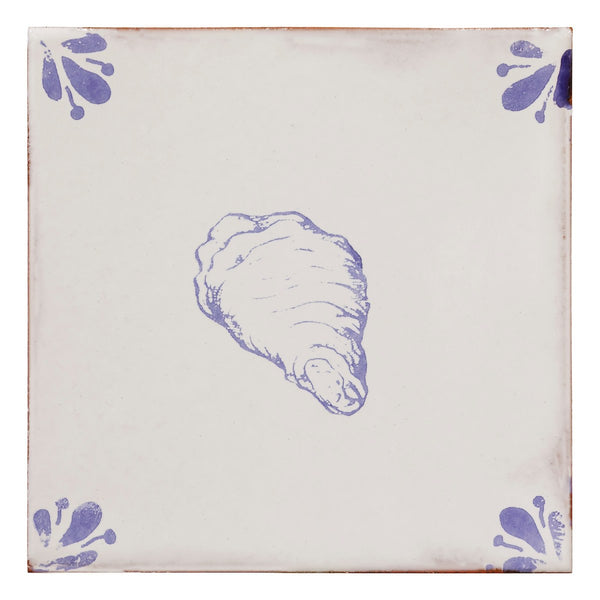

  • Peninsula 6x6 PD-SHELL, the drawing on one tile6x6 PD-SHELL

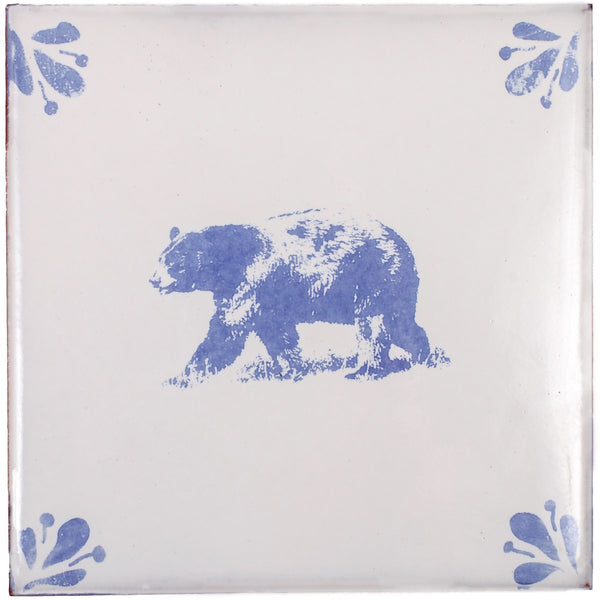

  • Peninsula 6x6 PD-OSO 2, the drawing on one tile6x6 PD-OSO 2

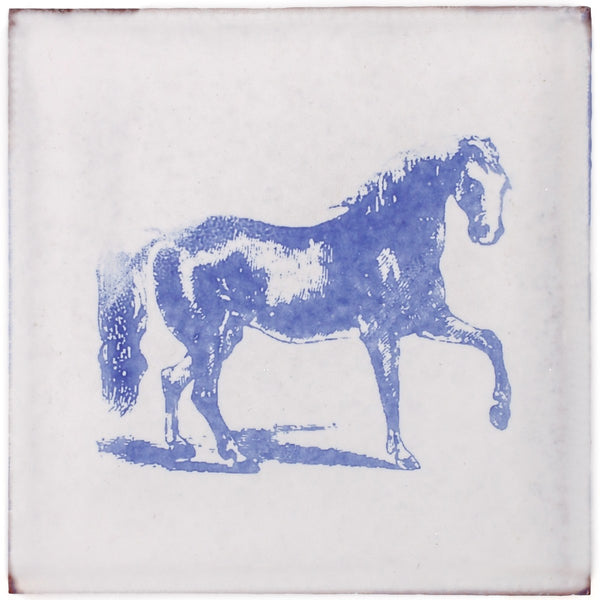

  • Peninsula 4x4 PD-CABALLO, the drawing on one tile4x4 PD-CABALLO

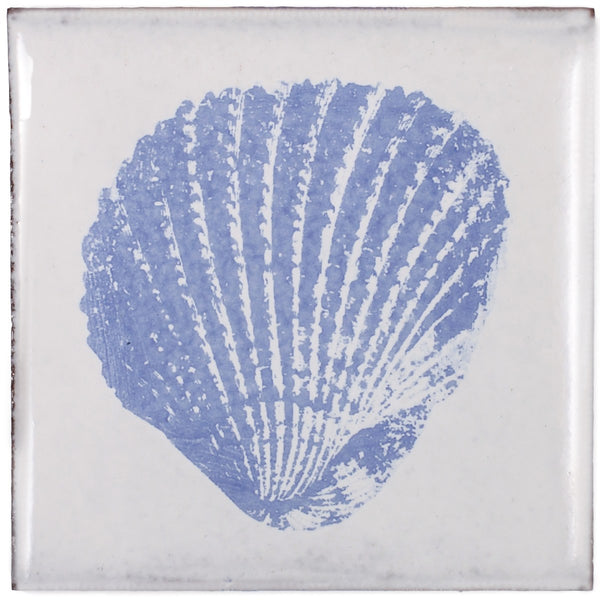

  • Peninsula 4x4 PD-CASCARA, the drawing on one tile4x4 PD-CASCARA

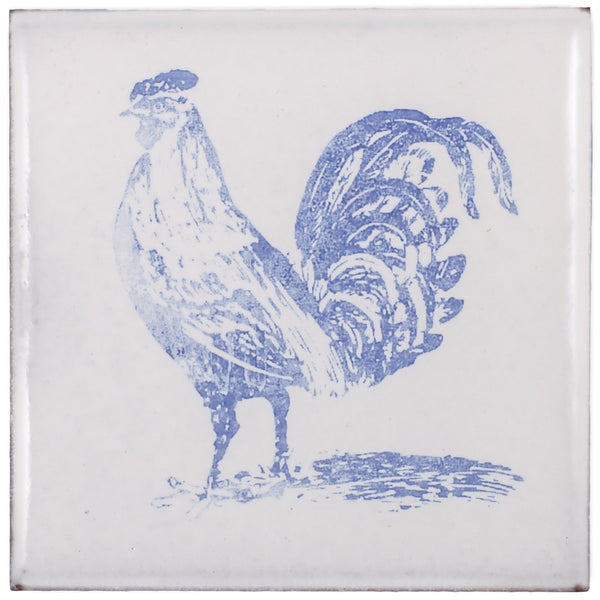

  • Peninsula 4x4 PD-GALO, the drawing on one tile4x4 PD-GALO

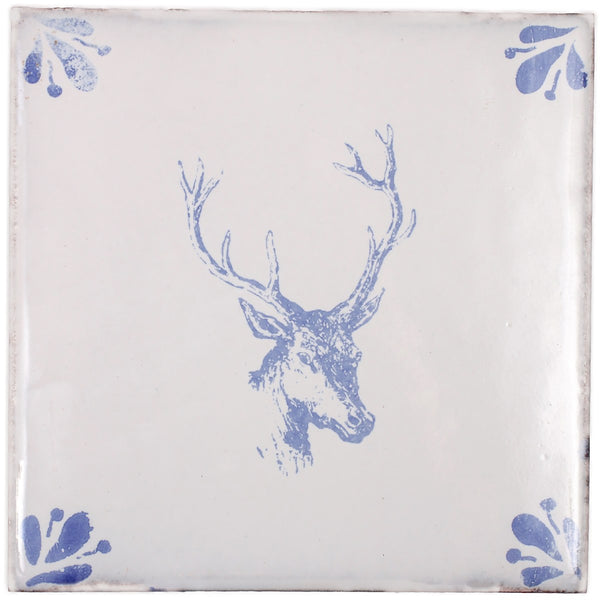

  • Peninsula 6x6 PD-CIERVO, the drawing on one tile6x6 PD-CIERVO

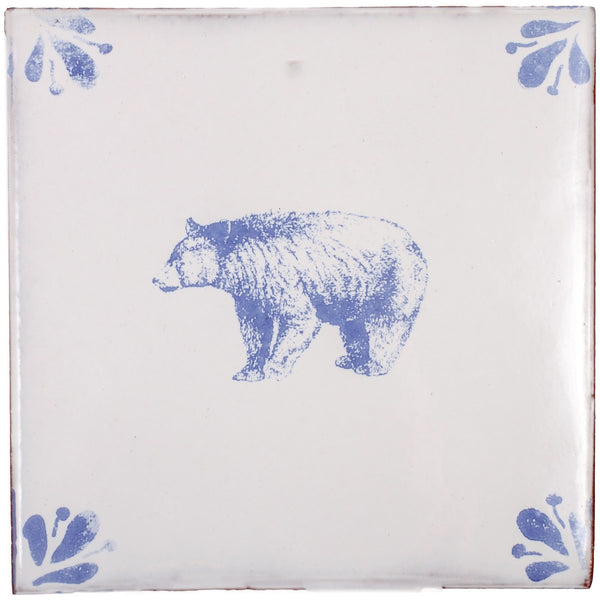

  • Peninsula 6x6 PD-OSO 1, the drawing on one tile6x6 PD-OSO 1

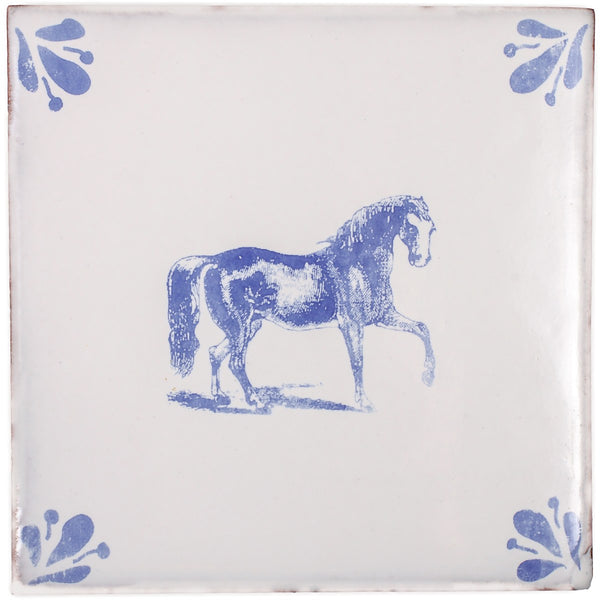

  • Peninsula 6x6 PD-CABALLO, the drawing on one tile6x6 PD-CABALLO

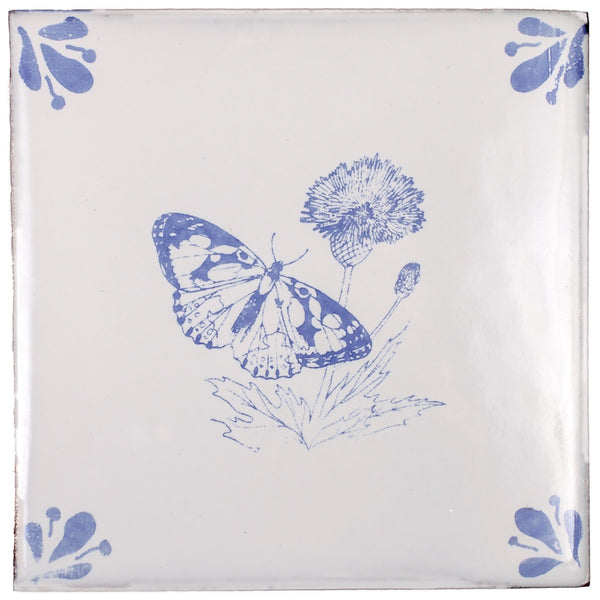

  • Peninsula 6x6 PD-MARIPOSA, the drawing on one tile6x6 PD-MARIPOSA

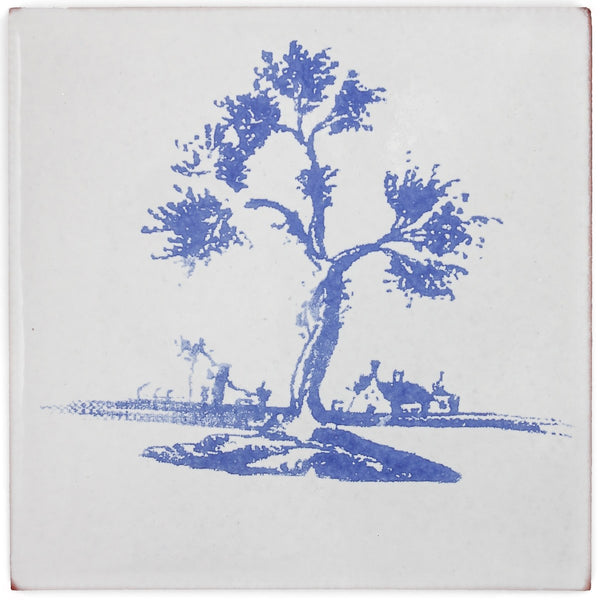

  • Peninsula 4x4 PD-TREE 3, the drawing on one tile4x4 PD-TREE 3

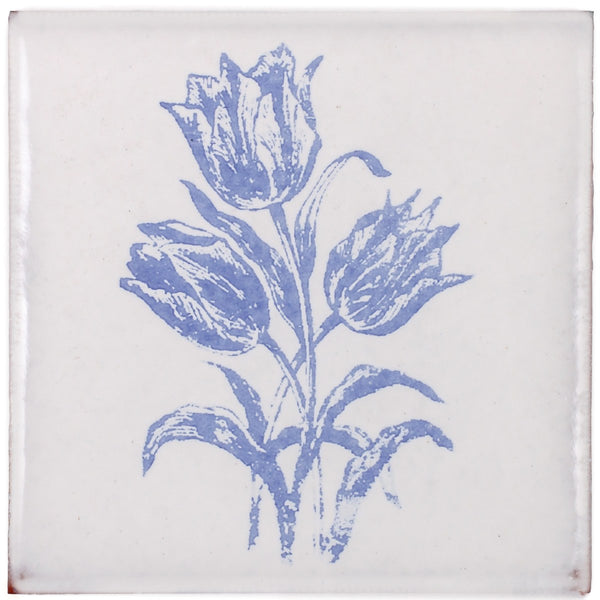

  • Peninsula 4x4 PD-TULIPS, the drawing on one tile4x4 PD-TULIPS

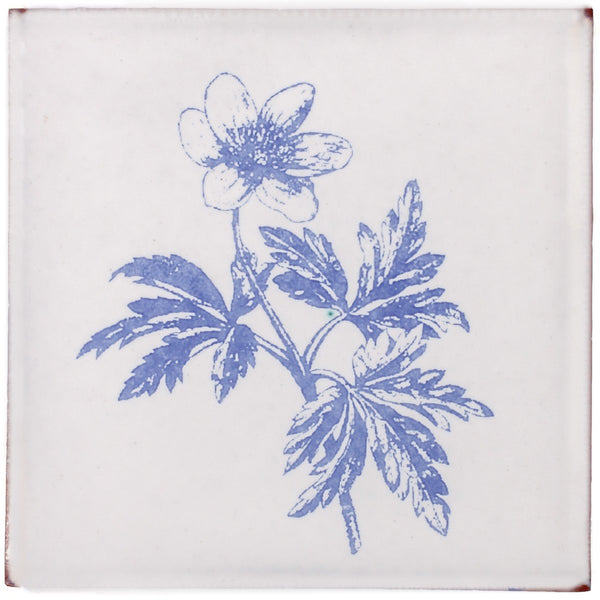

  • Peninsula 4x4 PD-WILDFLOWER, the drawing on one tile4x4 PD-WILDFLOWER

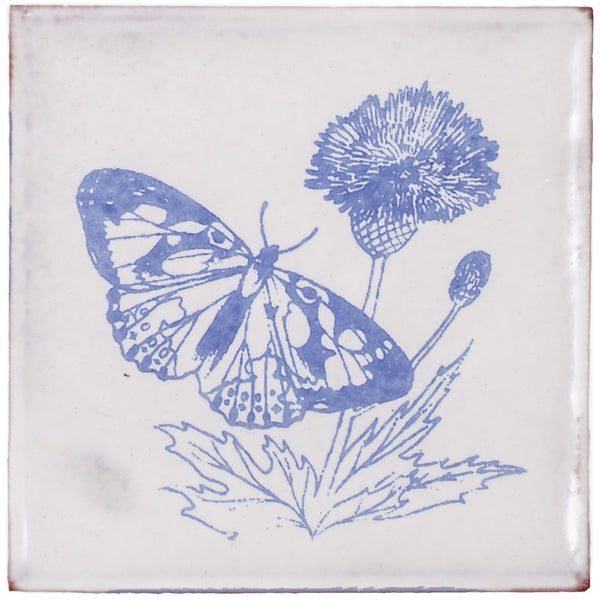

  • Peninsula 4x4 PD-MARIPOSA, the drawing on one tile4x4 PD-MARIPOSA

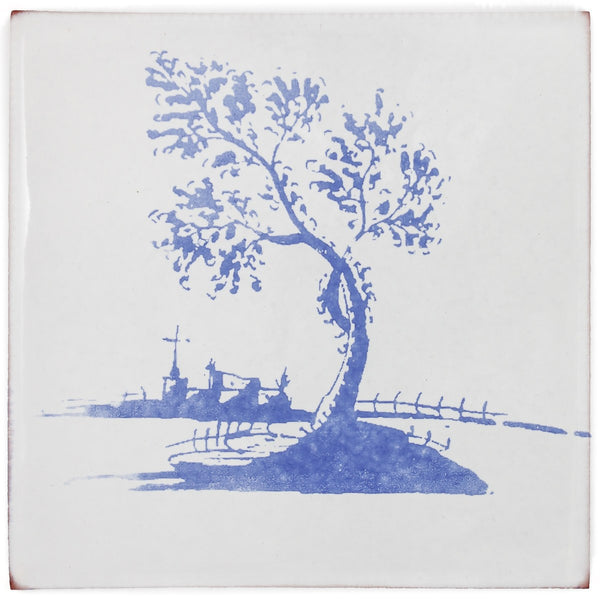

  • Peninsula 4x4 PD-TREE 1, the drawing on one tile4x4 PD-TREE 1

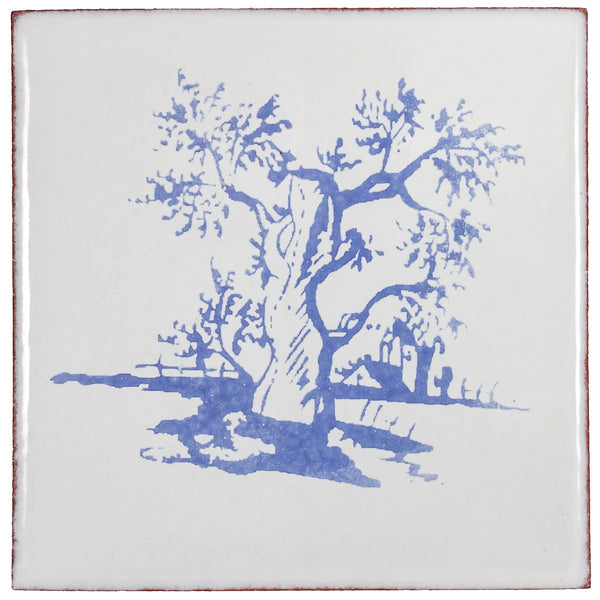

  • Peninsula 4x4 PD-TREE 2, the drawing on one tile4x4 PD-TREE 2

Two more are made as murals rather than single tiles, and sold as complete sets. The murals.

The murals

Two, sold as sets

Two of the drawings run across several tiles instead of sitting on one, so they are ordered as a complete set rather than by the piece.

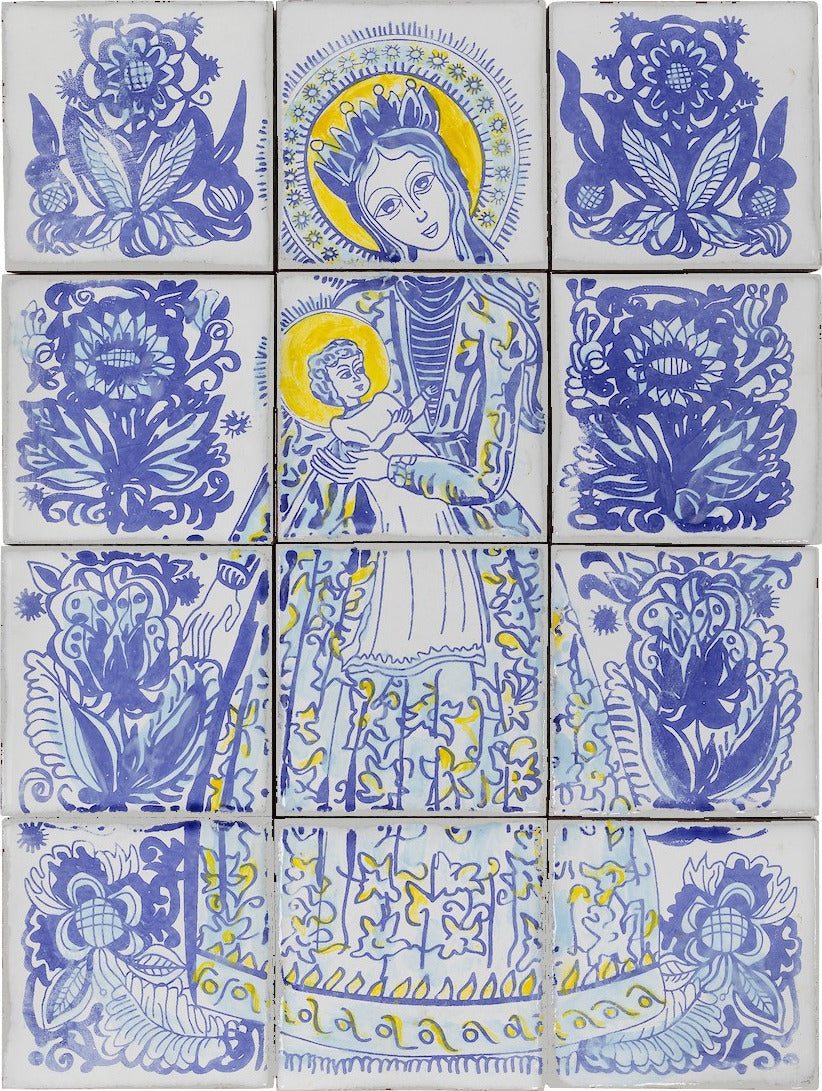

  • Peninsula Virgin, the whole design laid up Peninsula Virgin Twelve 4x4 tiles to the design, three across and four down.

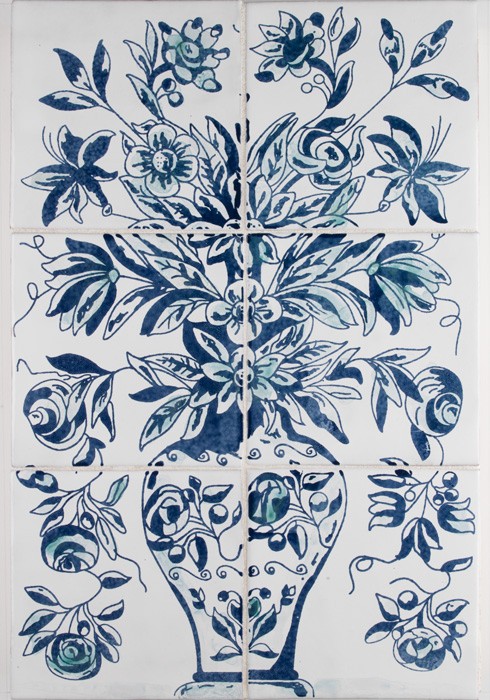

  • Peninsula Vase, the whole design laid up Peninsula Vase Six 6x6 tiles to the design, two across and three down.

Finished size depends on the joint you set them at, so tell us the wall and we will work it out with you. Lay it out.

Applications

Where Peninsula can go

A short list, and a deliberate one. The substrate matters as much as the tile, so send us the drawing if you are unsure.

  • Walls Walls Field and deco alike, at all four sizes.
  • Floors Floors The same body underfoot, at half an inch.
  • Indoor Indoor Kitchens, baths, halls and lobbies.

Good in wet conditions, and interior only. Ask us before you take Peninsula outside, and send us the drawing if the substrate is anything out of the ordinary.

Installed

One bath, two ways

Click either photograph to open it full size.

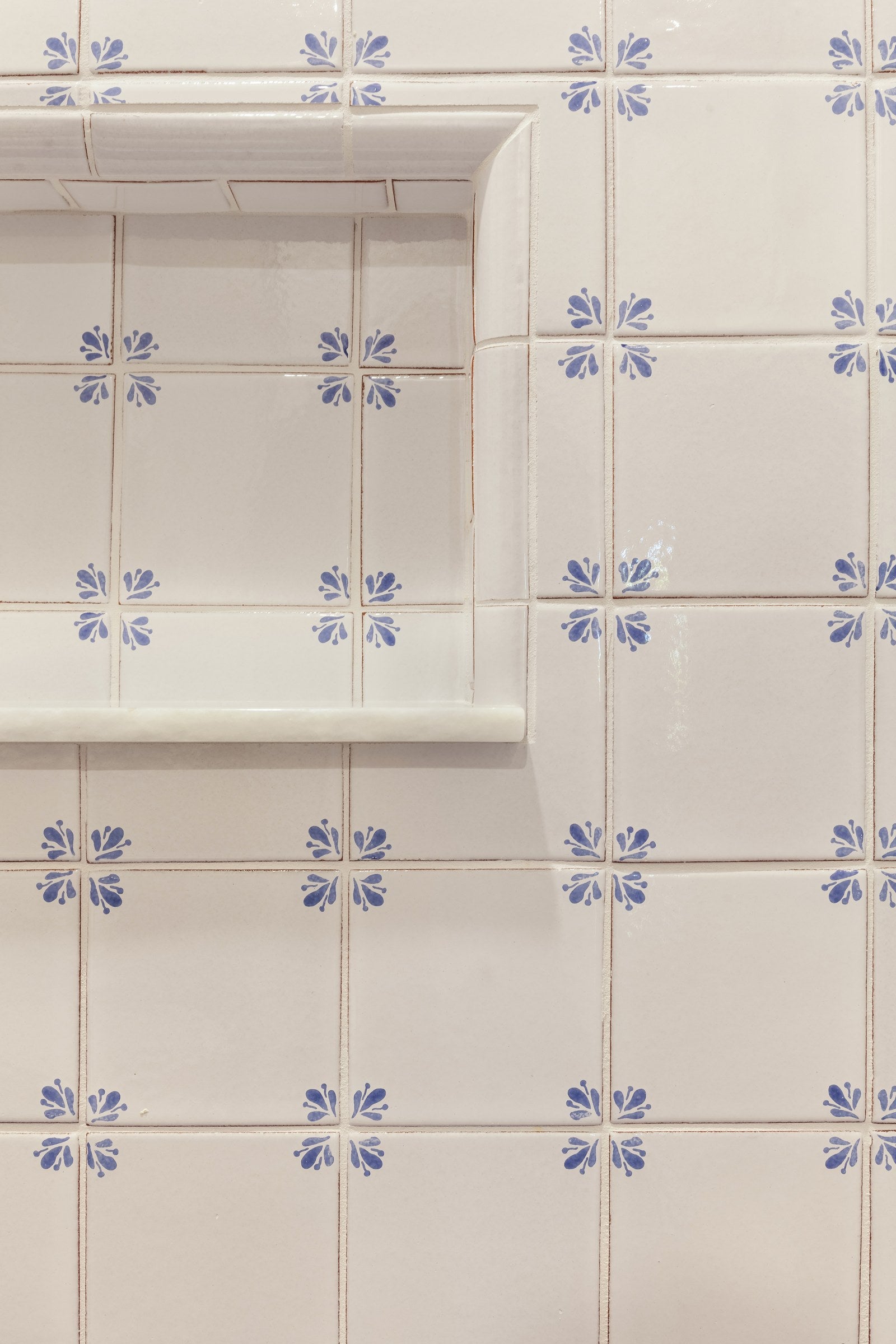

  • A niche in a Peninsula bath

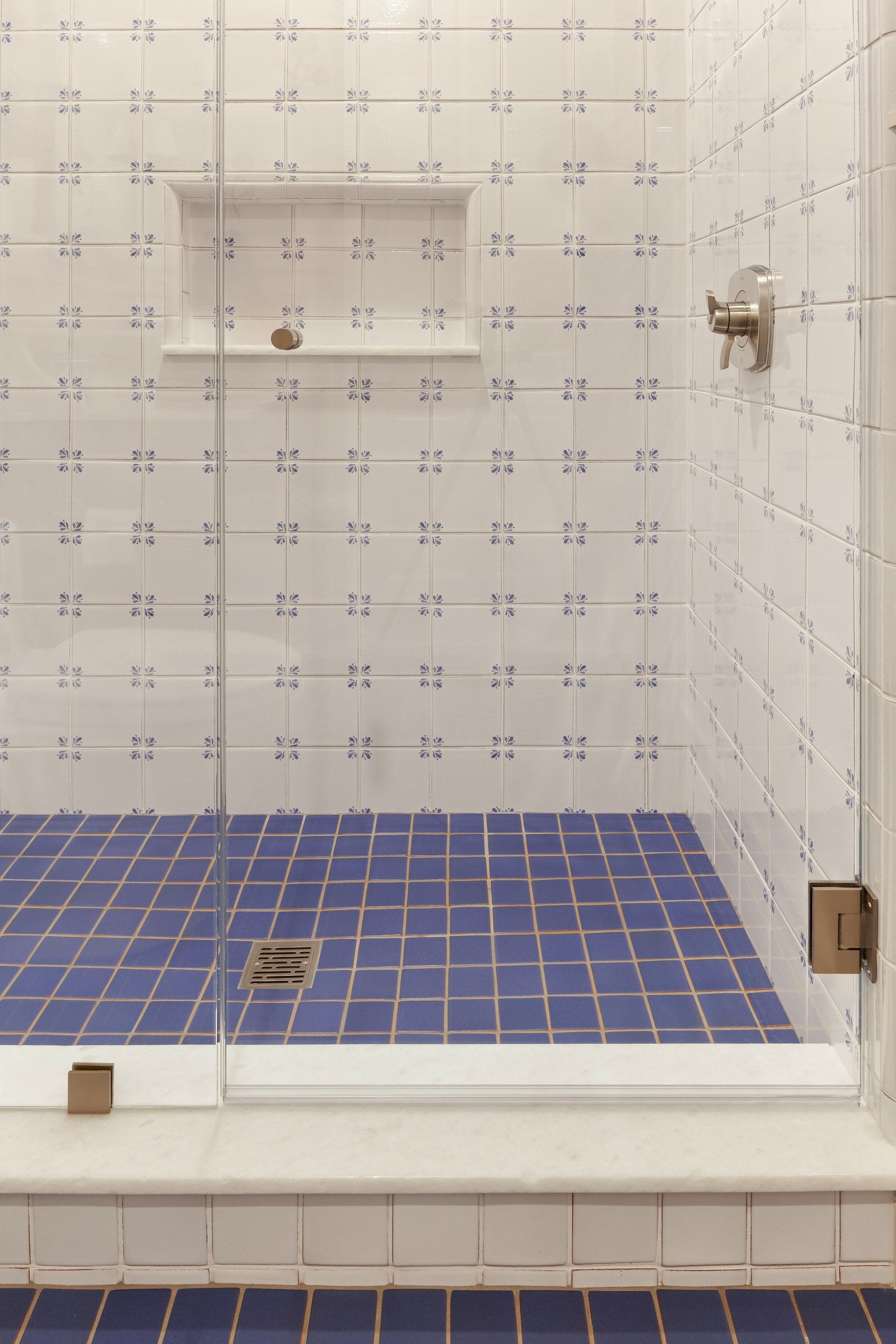

  • The same bath, with a blue floor underfoot

Every piece is fired by hand in Gardena, so the glaze varies from piece to piece and from firing to firing.

Lay it out

Send us the wall

Thirty four drawings and a plain field go together more ways than anyone can hold in their head.

Scatter them one to every ninth tile, run them as a band at eye level, or pack a panel solid. The two murals are already arranged. Everything else is yours to place.

Tell us the wall. The dimensions, the sizes you are working in, and which drawings caught your eye. We will work the rest out with you.

Hours
Monday to Friday, 8:00am to 4:30pm
Address
15209 S. Broadway St, Gardena, CA 90248
Send us the wall

Custom is the standard

Two pieces or ten thousand

We started as a custom shop and we still run that way. Send a chip. Bring a swatch. Show us what you're building. We match a glaze to a color you already have, cut shapes that do not exist yet, and turn your own artwork into a handpainted design. A sample is fired before any production commitment.

  • Custom Color
  • Custom Shape
  • Historical Match
  • Color Match
  • Two Pieces
  • Two Pallets

The material

Built to outlast the install

The craft is in the maker's hands. The performance is in the fired clay body. ARTO publishes CSI 3-Part specifications and installation guides so architects and designers can specify with confidence.

  • The mix

    Red Body Ceramic

    Handcrafted in Gardena from high fired terracotta, a red body at half an inch. The field is the Studio field and the drawings are screened onto the same body, at 6x6 and 4x4. Every piece is made by hand, so size varies across a run.

  • The color

    Two Field Glazes

    Blue Satin and Pure White, and nothing else. Thirty four screened drawings and two murals are set into that field, so what carries a Peninsula wall is the drawing rather than the glaze.

  • The documentation

    Specs and Downloads

    A CSI 3-Part master specification covers clay tile, 09 30 13 Quarry Tile. Cleaning, efflorescence and sealing guides are in the technical library.

  • The application

    Interior Walls and Floors

    Interior walls and floors. Good in wet conditions. Ask us before you put it anywhere else. Every piece is fired by hand, so the glaze varies from piece to piece and from firing to firing.

  • The industry

    Industry Standards

    Member of TCNA, NTCA, and CTDA. Custom products are available with project-specific testing on request.

  • The decision

    Sampling

    Always order a sample before you commit. What you see on a screen is not what your hand will know in the room. Samples ship from our Gardena facility.

Material truth

Rustic Elegance

Rough and refined at the same time. A handcrafted edge where no two pieces are exactly alike. Glaze fired over handmade clay, in a palette that reads differently at every hour of the day.

It is not a marketing phrase. It is a material truth. Far from perfect, and that is the whole point.
