Artillo, handcrafted

ARTO's Original And Most Extensive Collection

Thickness
Three Quarter Inch
Colors
Thirty Eight Samples
Run Size
Two Pieces Or Twenty Truckloads
Made In
Gardena, California

Artillo collection

Six ways to work in Artillo

The Artillo series is ARTO's original and most extensive collection, a slightly rustic look with a natural undulating surface and straight edges.

Individually handcrafted and strong enough for freezing and thawing climates, yet warm enough to showcase inside your home.

ARTO's Signature Rustic Elegance is achieved with the use of natural materials and enhanced by handcrafting each unit.

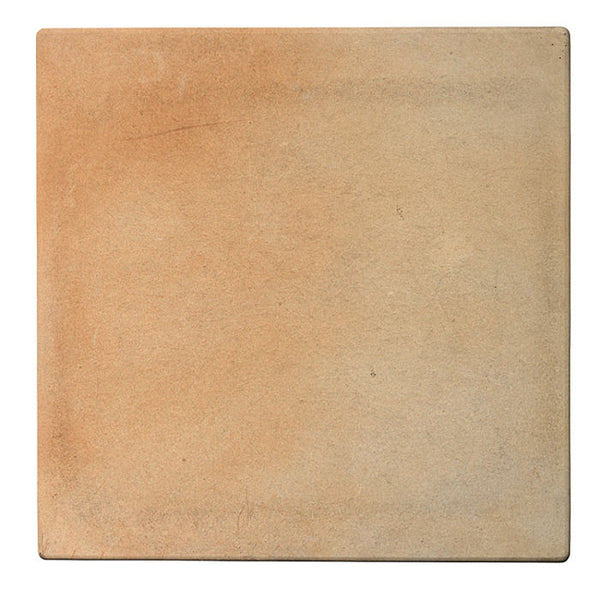

Daisy Deco 17x17, Hacienda Flash, Limestone

Shapes and patterns

Every shape, individually cast

Twenty four shapes and pattern sets, each cast by hand in three quarter inch concrete with an irregular surface and square edges. Every one is available in all of our concrete colors and textures.

  • Artillo Hexagon shape drawing Hexagon 14", 12", 8", 6"
  • Artillo Triangle shape drawing Triangle 7"
  • Artillo Diamond shape drawing Diamond 8x13 and 3x5
  • Artillo Durango shape drawing Durango 11x15 and 3x4
  • Artillo Conche shape drawing Conche 8"
  • Artillo Pata Grande shape drawing Pata Grande 4x4
  • Artillo Eye of Felipe shape drawing Eye of Felipe 8x10
  • Artillo San Felipe shape drawing San Felipe 12x13 and 3x4
  • Artillo Picket shape drawing Picket 4x8, 3x11, 8x24
  • Artillo Picket Set, 3x11 shape drawing Picket Set, 3x11 Two pickets with one 8x8
  • Artillo Picket Set, 4x8 shape drawing Picket Set, 4x8 Two pickets with one 4x4
  • Artillo Picket Set, 8x24 shape drawing Picket Set, 8x24 Two pickets with one 16x16
  • Artillo Double Picket Set shape drawing Double Picket Set Four 3x11 pickets, one 8x8, one 4x4
  • Artillo Trapezoid shape drawing Trapezoid 5x13
  • Artillo Trapezoid Hexagon Set shape drawing Trapezoid Hexagon Set One 14" hexagon with six trapezoids
  • Artillo Granada Set shape drawing Granada Set One Granada with one 3" dot
  • Artillo Octagon Sets shape drawing Octagon Sets 12", 10", 8", each with its square
  • Artillo Daisy Deco shape drawing Daisy Deco 17x17 and 8x8
  • Artillo Clip Corner shape drawing Clip Corner 8x8 and 12x12, Artillo 3x3 sold separately
  • Artillo Chevron Set shape drawing Chevron Set Chevron A and Chevron B, 5x9
  • Artillo Arch Sets shape drawing Arch Sets 3x7 and 6x13
  • Artillo Rollup Set shape drawing Rollup Set 2x2 key, 9" hoop, 3" dot, two 12" waves
  • Artillo Swerve Set shape drawing Swerve Set 12x12
  • Artillo Van Gogh's Ear shape drawing Van Gogh's Ear 12 x 15 1/2

Applications

  • Walls
  • Floors
  • Indoor
  • Outdoor
  • Pedestrian
  • Vehicular
  • Freeze / Thaw
Get a Color Sample

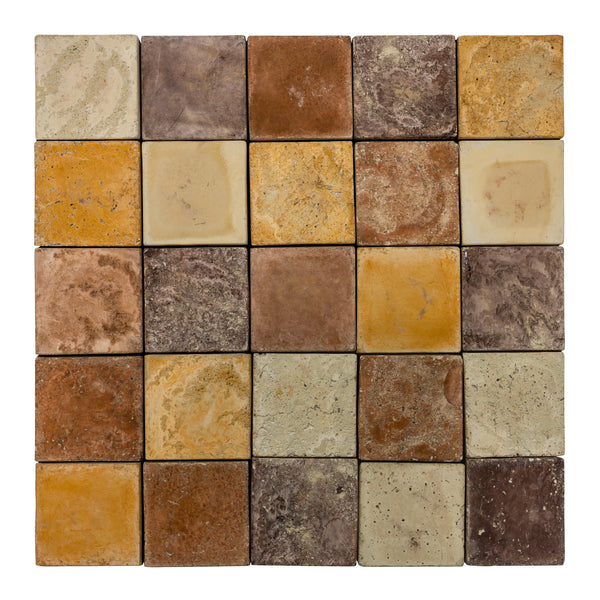

6x12, Creme Fraiche, Vintage

Field tile

Squares and rectangles, one inch to sixteen

Ten squares and ten rectangles, from a one inch strip to a sixteen inch floor tile. The same hand cast body and square edges as every other Artillo format.

Squares

Ten sizes, 16x16 down to 2x2

Artillo square formats nested to show relative size
  • 16x16 15 1/2 x 15 1/2
  • 12x12 11 1/2 x 11 1/2
  • 10x10 9 3/4 x 9 3/4
  • 8x8 7 1/2 x 7 1/2
  • 6x6 5 1/2 x 5 1/2
  • 5x5 4 3/4 x 4 3/4
  • 4x4 3 7/8 x 3 7/8
  • 3.5x3.5 3 3/8 x 3 3/8
  • 3x3 2 7/8 x 2 7/8
  • 2x2 2 x 2

Rectangles

Ten sizes, 8x16 down to 1x9

Artillo rectangular formats shown at relative size
  • 8x16 7 1/2 x 15 3/8
  • 4x16 3 3/8 x 15 3/8
  • 8x12 7 7/8 x 11 3/8
  • 6x12 5 1/4 x 11 1/8
  • 4x12 3 3/4 x 11 7/8
  • 4x8 3 1/2 x 7 1/2
  • 3x6 2 7/8 x 5 7/8
  • Brick 2x8 2 1/4 x 7 1/2Half inch
  • 2x4 2 x 4 1/2Half inch
  • 1x9 1 x 8 7/8

Sizes above are nominal. Artillo is three quarter inch thick throughout the series, with two exceptions. Brick 2x8 and 2x4 are half inch. Coverage figures assume a half inch grout joint.

Applications

  • Walls
  • Floors
  • Indoor
  • Outdoor
  • Pedestrian
  • Vehicular
  • Freeze / Thaw
Get a Color Sample
Arabesque 8C, Early Gray, Limestone

Arabesque patterns

Twenty six patterns, sold as sets

Every arabesque is a set, two or more shapes cut to lock together. Square edges and corners, the same irregular hand cast surface as the rest of the series, available in all of our concrete colors and textures.

  • Artillo Arabesque Pattern 1 layout drawing Pattern 1 One Daisy and one Daisy Star 8x8 Daisy Deco, 7x7 Daisy Star
  • Artillo Arabesque Pattern 2A layout drawing Pattern 2A Wing Picket 5x9 Wing Picket
  • Artillo Arabesque Pattern 2B layout drawing Pattern 2B One Wing Picket and one Cross Picket 5x9 Wing Picket, 6" Cross Picket
  • Artillo Arabesque Pattern 2C layout drawing Pattern 2C One 2C Star and one Cross Picket 9" 2C Star, 6" Cross Picket
  • Artillo Arabesque Pattern 2D layout drawing Pattern 2D One Cross Picket and two Artillo 2x2 6" Cross Picket, Artillo 2x2
  • Artillo Arabesque Pattern 3 layout drawing Pattern 3 One 3 Cross, two 3 Spear and one Artillo 2x2 11" Cross, 4x6 Spear, Artillo 2x2
  • Artillo Arabesque Pattern 4 layout drawing Pattern 4 One 4 Point Star and two Diamond 6" 4 Point Star, 3x5 Diamond
  • Artillo Arabesque Pattern 5A layout drawing Pattern 5A Eye of Felipe Artillo 8x10 Eye of Felipe
  • Artillo Arabesque Pattern 5B layout drawing Pattern 5B One Eye of Felipe and one San Felipe Artillo 8x10 Eye of Felipe, Artillo 12x13 San Felipe
  • Artillo Arabesque Pattern 8A layout drawing Pattern 8A One Quatrefoil and one 8A Cross 5" Quatrefoil, 5" 8A Cross
  • Artillo Arabesque Pattern 8B layout drawing Pattern 8B One Quatrefoil and one 8B Cross 5" Quatrefoil, 5" 8B Cross
  • Artillo Arabesque Pattern 8C layout drawing Pattern 8C One Quatrefoil and one 8C Cross 5" Quatrefoil, 5" 8C Cross
  • Artillo Arabesque Pattern Big 8C layout drawing Pattern Big 8C One Big Quatrefoil and one Big 8C Cross 9" Quatrefoil, 10" 8C Cross
  • Artillo Arabesque Pattern 9A layout drawing Pattern 9A One 9A Star and one Dot 4" 9A Star, 3" Dot
  • Artillo Arabesque Pattern Big 9A layout drawing Pattern Big 9A One Big 9A Star and one Big 9A Dot 6" 9A Star, 8" Dot
  • Artillo Arabesque Pattern 9B layout drawing Pattern 9B Three 9B Spear and four Dot 9B Spear, 3" Dot
  • Artillo Arabesque Pattern 9C layout drawing Pattern 9C Two 9C Spear and one Dot 9C Spear, 3" Dot
  • Artillo Arabesque Pattern 11A layout drawing Pattern 11A One Square Star and one 11A Cross 5" Square Star, 6" 11A Cross
  • Artillo Arabesque Pattern 11B layout drawing Pattern 11B One Square Star and one 11B Cross 5" Square Star, 5" 11B Cross
  • Artillo Arabesque Pattern 12 layout drawing Pattern 12 One 12 Skinny and one 12 Fat 5x8 Skinny, 5x8 Fat
  • Artillo Arabesque Pattern 13 layout drawing Pattern 13 One 13 Clover and one 13 Cross 7" Clover, 7" 13 Cross
  • Artillo Arabesque Pattern 14 layout drawing Pattern 14 One 14 Skinny and one 14 Fat 5x10 Skinny, 6x10 Fat
  • Artillo Arabesque Pattern Mini 14 layout drawing Pattern Mini 14 One Mini 14 Skinny and one Mini 14 Fat 4x7 Skinny, 5x7 Fat
  • Artillo Arabesque Pattern 15 layout drawing Pattern 15 One 15 Skinny and one 15 Fat 7x10 Skinny, 7x11 Fat
  • Artillo Arabesque Pattern Mini 15 layout drawing Pattern Mini 15 One Mini 15 Skinny and one Mini 15 Fat 5x7 Skinny, 5x8 Fat
  • Artillo Arabesque Pattern 16 layout drawing Pattern 16 Modern Felipe 8x10 Modern Felipe

The dark tiles in each drawing mark the pieces the set is made from. Several arabesque patterns are built from shapes that also sell on their own, so Eye of Felipe, San Felipe, Daisy Deco and the Artillo 2x2 appear in more than one section of this page.

Applications

  • Walls
  • Floors
  • Indoor
  • Outdoor
  • Pedestrian
  • Vehicular
  • Freeze / Thaw
Get a Color Sample

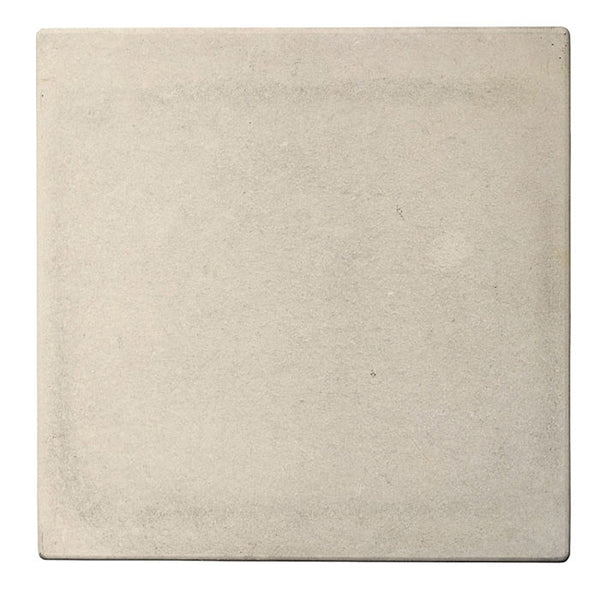

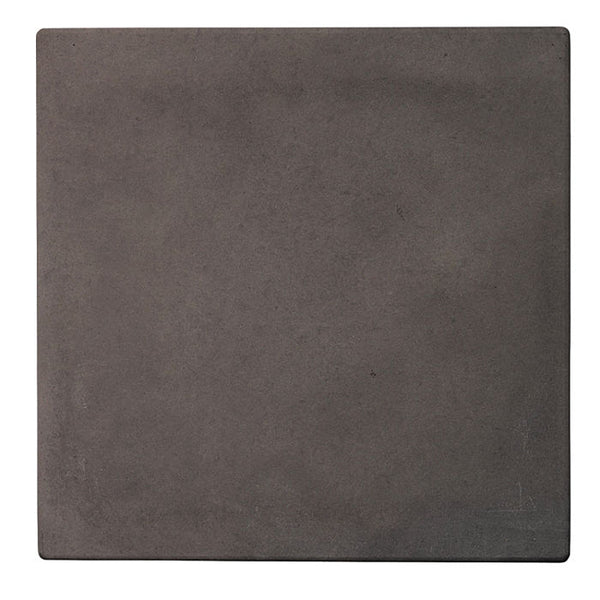

Picket Set 3x11, Charcoal and Rice

Accessories

Fifty seven pieces, for the finish

Stairtreads, bullnose, cove base, decos, chair rails, liners and mouldings. The same concrete body, the same colors and the same four textures as the field tile they trim.

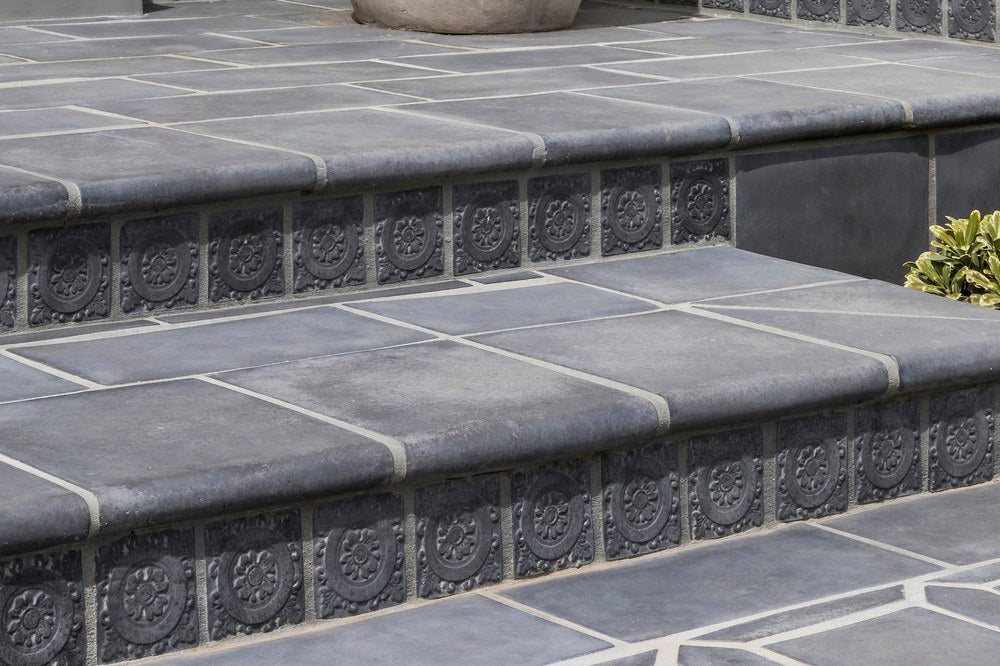

  • Artillo stairtreads with a deco riser band, Charcoal color, on an exterior entry stairStairtreads and decos, Charcoal

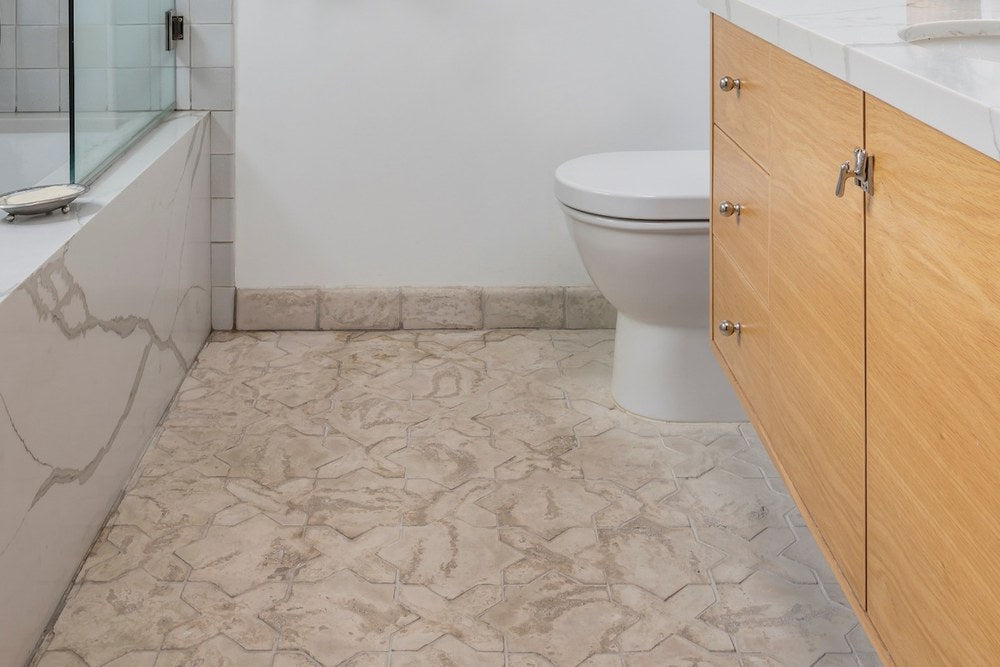

  • Artillo surface bullnose run as a base against a wall, over an Arabesque 2C floor, Early Gray color, Limestone textureSurface bullnose with Arabesque 2C, Early Gray, Limestone

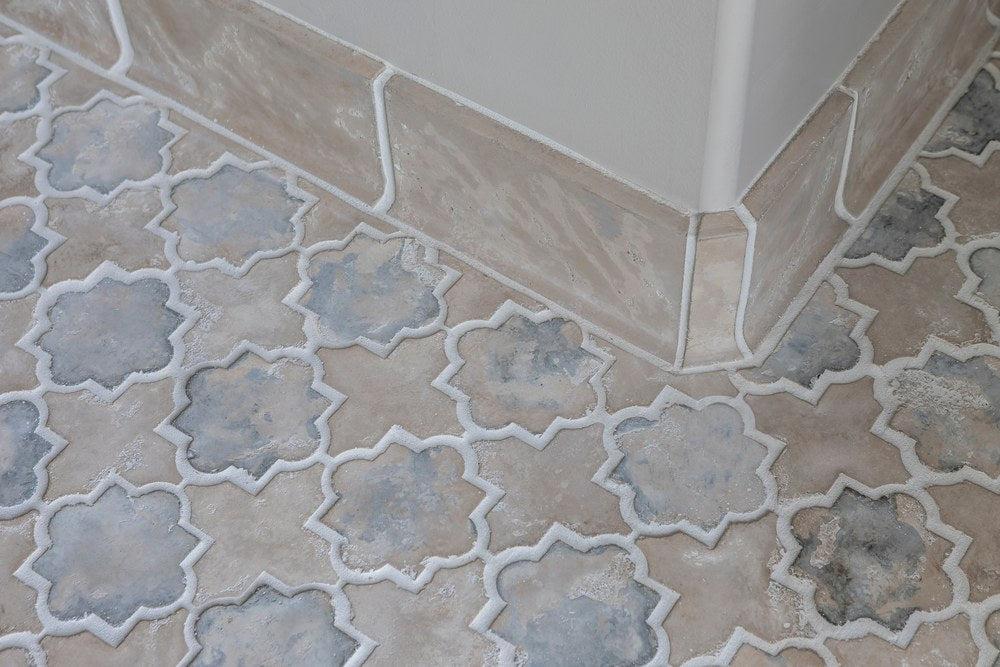

  • Artillo cove base turning an outside corner, meeting an Arabesque 8C floor, Winslet Blend colorCove base with Arabesque 8C, Winslet Blend

  • Nineteen

    Stairtreads

    Treads and matching corners for steps and pool edges.

    12x12, 12x13, 12x16 and 12x20, plus 6x12 and the Pied tread. Grooved, coping and stepon profiles each with their own corners.

  • Nine

    Surface Bullnose

    A finished edge where the tile stops.

    4x8 and 3x12 in long and short side, then 8x8, 12x12 and 16x16 with corners.

  • Five

    Cove Base

    The transition from floor to wall.

    6x6, 8x8 and 6x12, in bullnose top or flat top.

  • Five

    Decos

    Single pieces set into the field.

    Fiesta 12x12, Monterey in 5x5 and 4x4, Flower Deco 5x5, Catalan 4x4.

  • Five

    Chair Rails

    A horizontal break across a wall.

    Santa Barbara, Cordova, La Jolla, Pearls and Viejo.

  • Ten

    Liners

    Narrow bands, every one named for a California town.

    San Pedro, San Marcos, San Ysidro, Santa Ana, Santa Cruz, Santa Margarita 1 and 2, Santa Maria, Santa Paula, Santa Ynez.

  • Four

    Mouldings

    Profiles that cap and return an edge.

    Rope step and rope wall moulding, stairtread head, coping head.

Corners are made for the treads, copings and bullnose that need them, so an outside edge does not have to be mitred on site. Ask for the full accessory list if you are specifying a stair, a pool edge or a wainscot.

Applications

  • Walls
  • Floors
  • Indoor
  • Outdoor
  • Pedestrian
  • Vehicular
  • Freeze / Thaw

Concrete textures

Four surfaces, one body

Four surface textures, available on any Artillo shape and in any of our concrete colors. Standard is what you get if you do not specify. The other three are asked for.

  • ARTO concrete Standard texture Standard Varies from item to item and does not need to be specified. Some items may feature rough or textured surfaces already, while others may have a smooth, flat surface.
  • ARTO concrete Luna texture Luna Our most distressed texture, inspired by the craters, seas, valleys, and other topographical features of the moon's surface for the ultimate expression of rustic elegance.
  • ARTO concrete Limestone texture Limestone An organic, weathered appearance that generally lightens the original color, a great option for pools and where extra slip resistance is desired.
  • ARTO concrete Travertine texture Travertine Adds a rustic, pitted surface to any ARTO color, used to complement other materials or create your own distinctive appearance.

Vintage

Vintage features a blend of Limestone, Luna, Standard, and Travertine textures to create unique looks ranging from distressed terracotta to natural stone. Order any color in our Vintage texture to receive a combination of pieces made in all four surface textures.

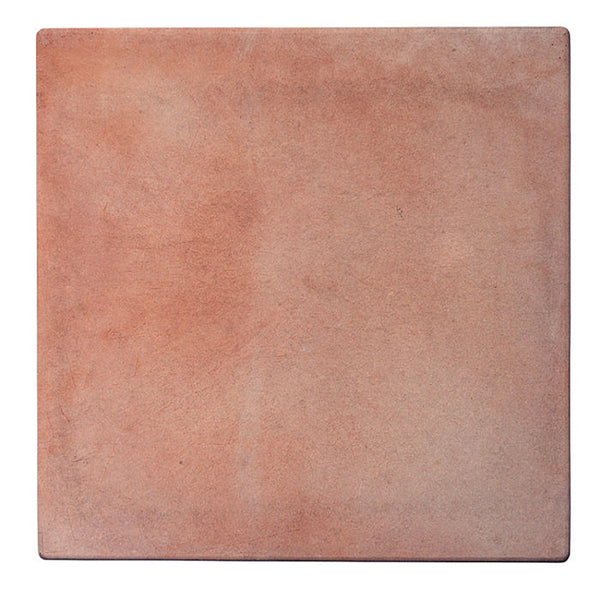

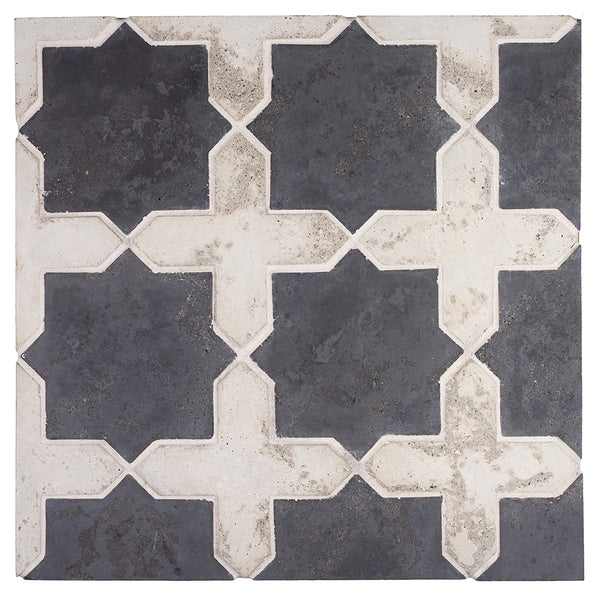

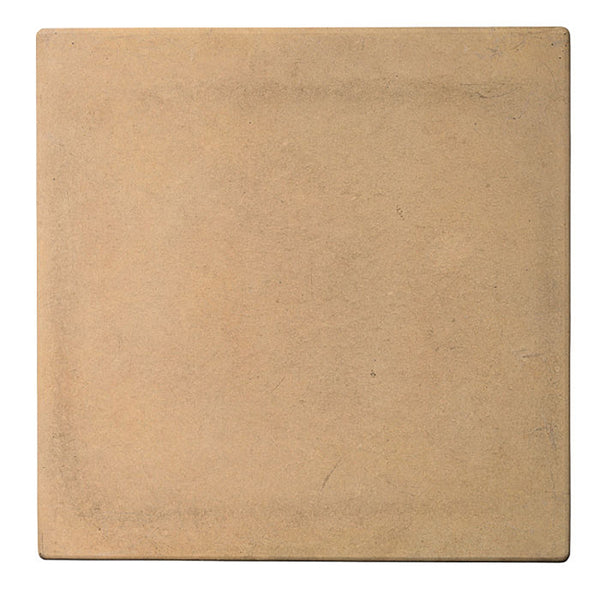

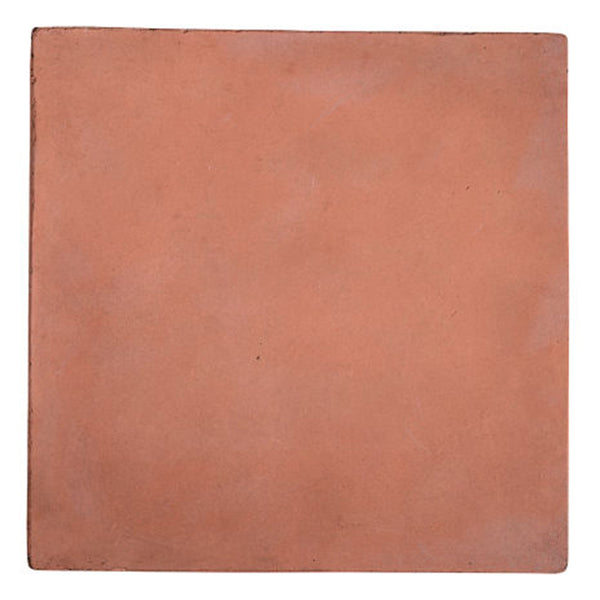

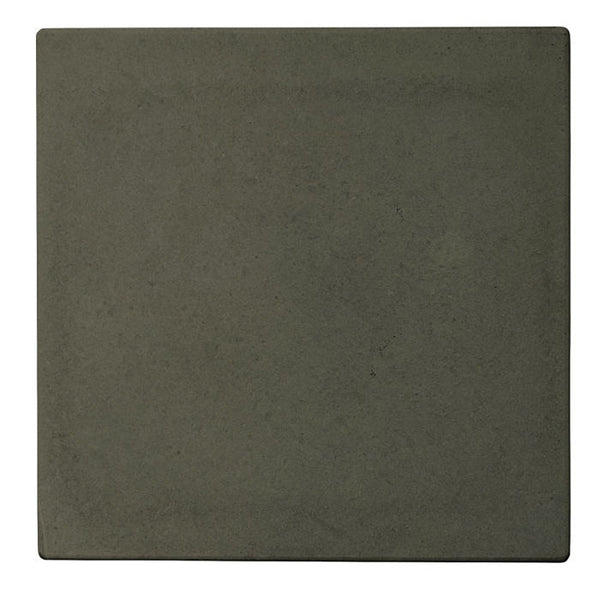

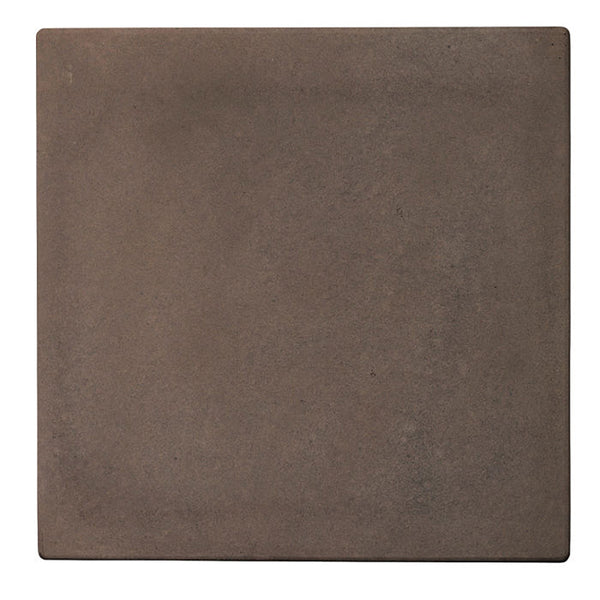

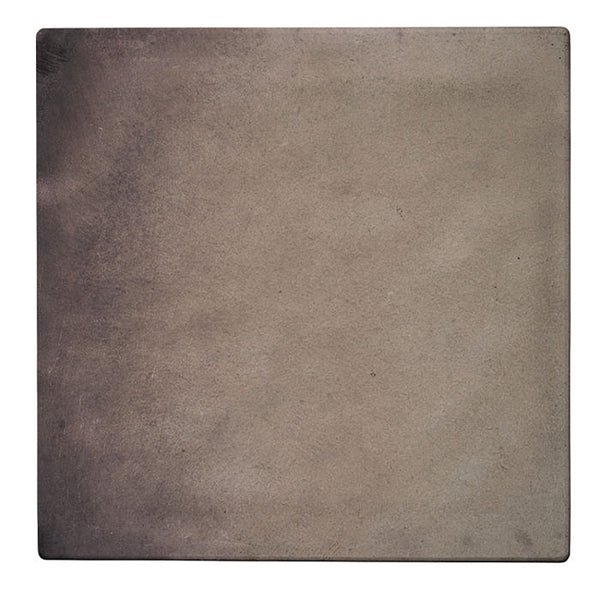

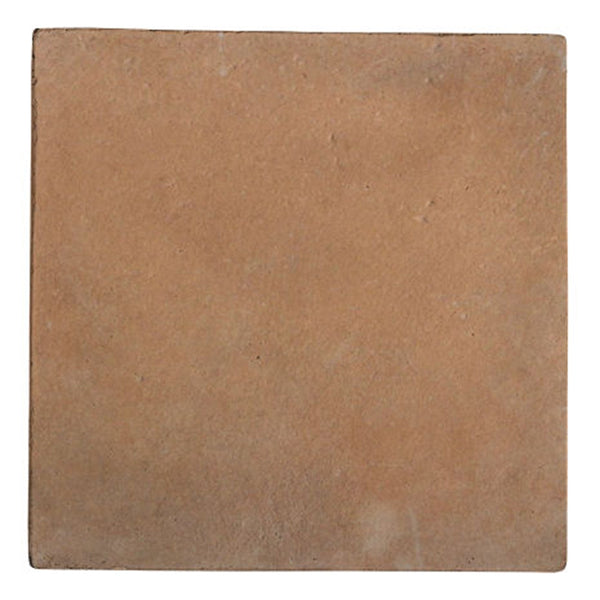

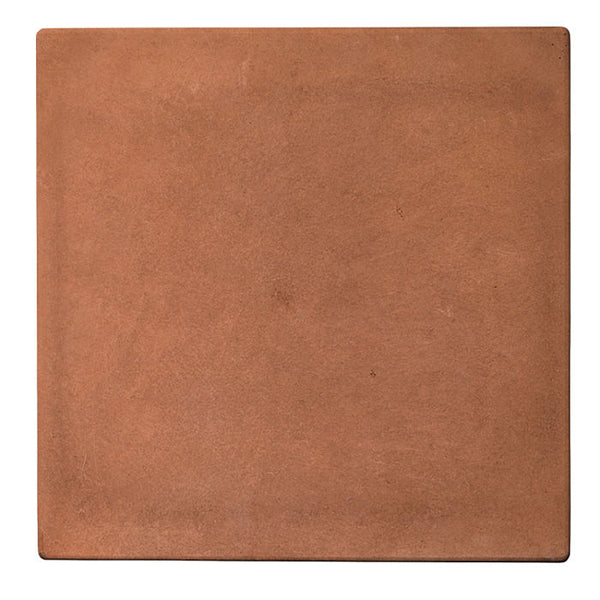

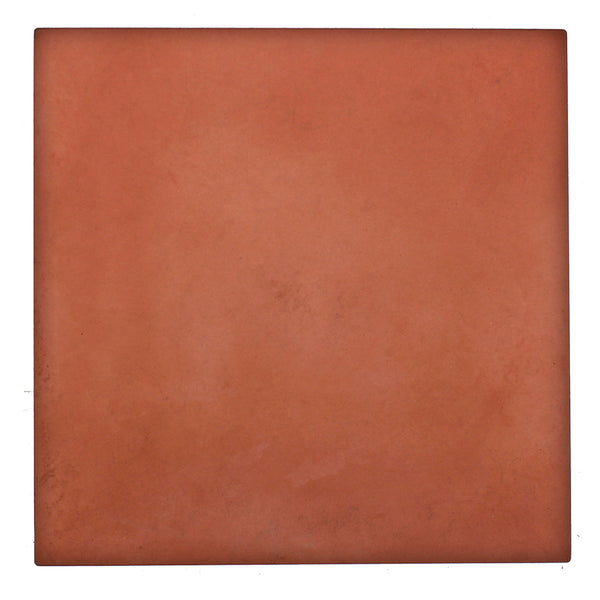

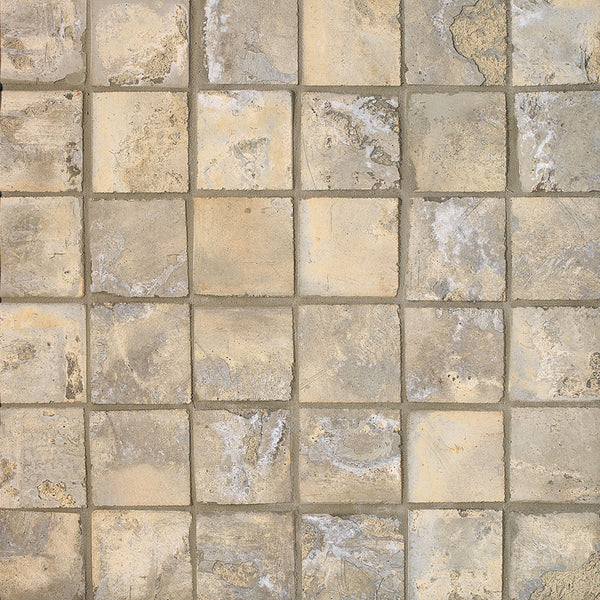

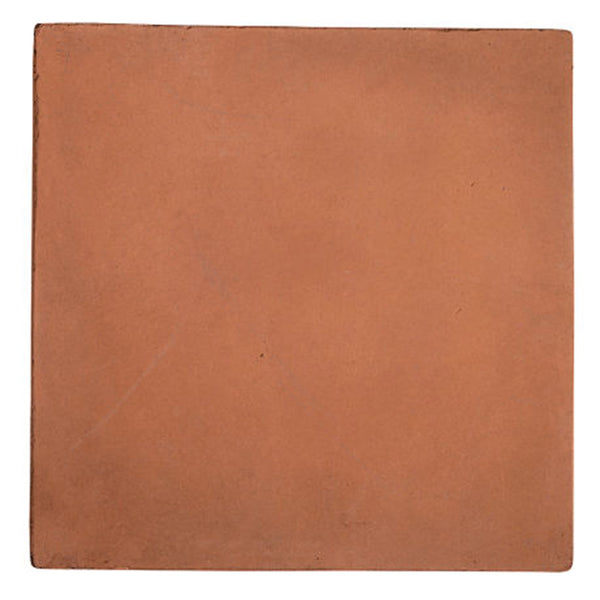

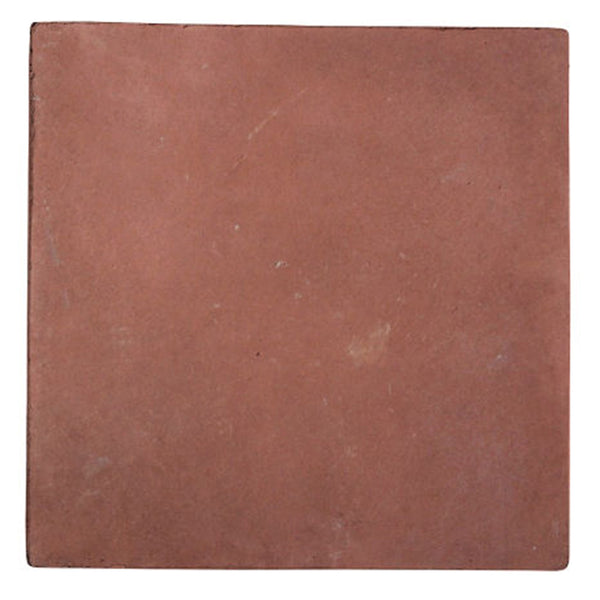

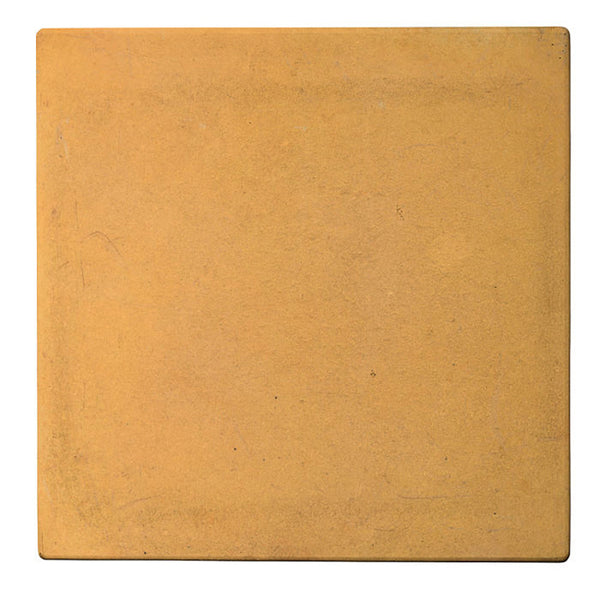

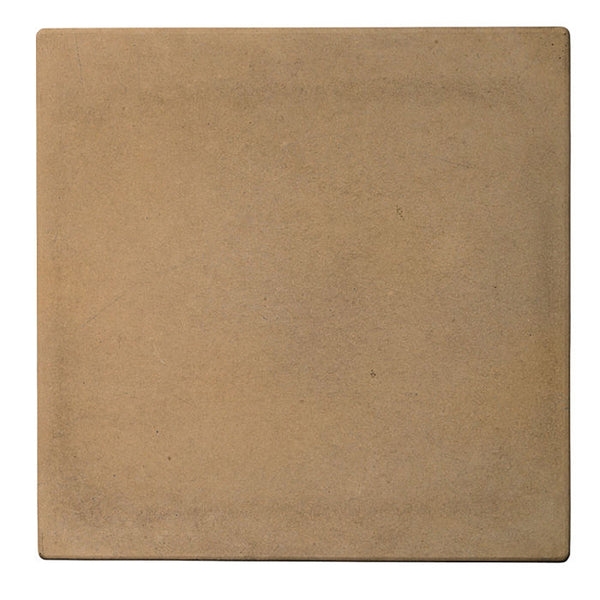

Color and texture

Every color the concrete takes

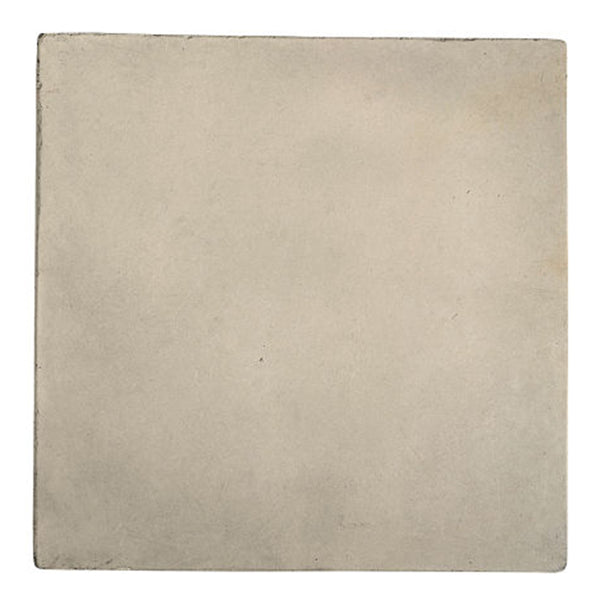

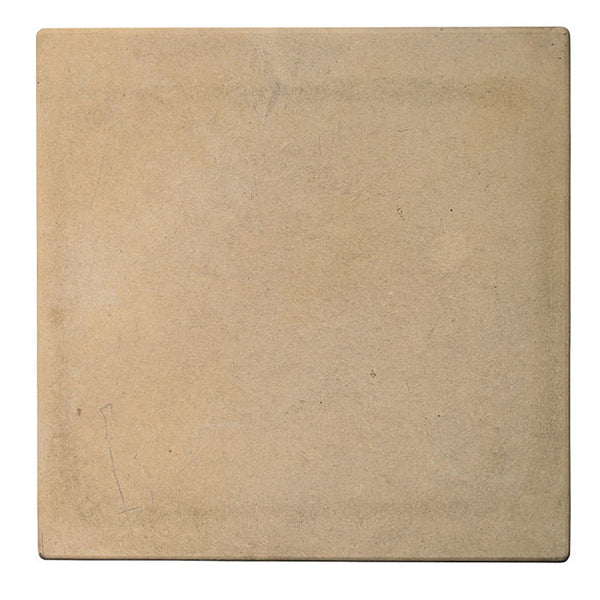

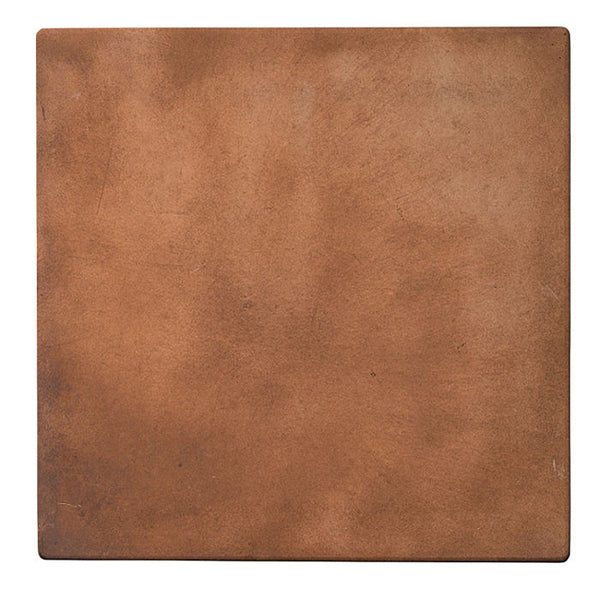

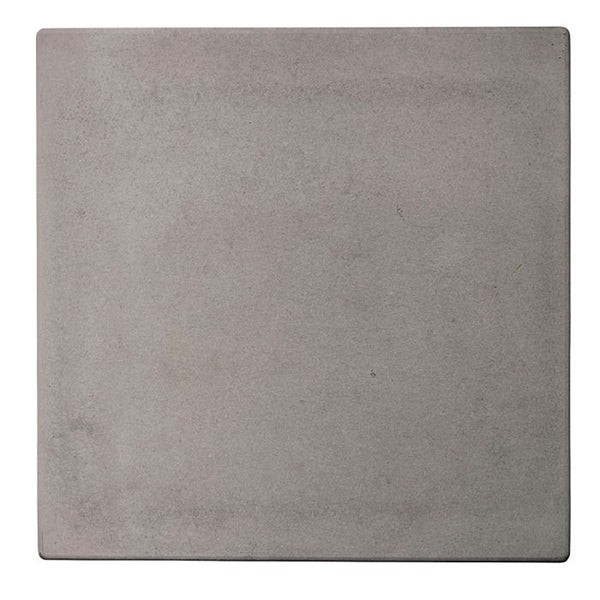

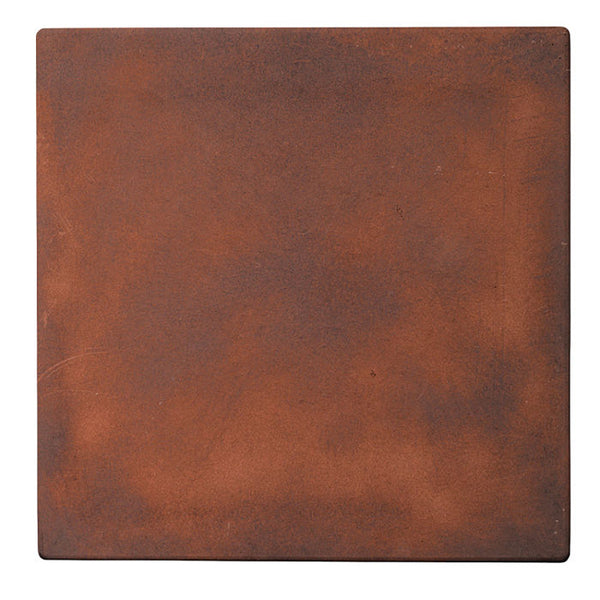

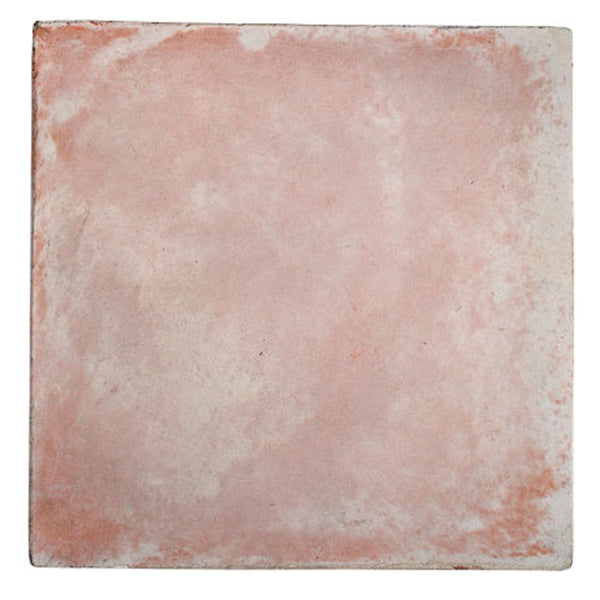

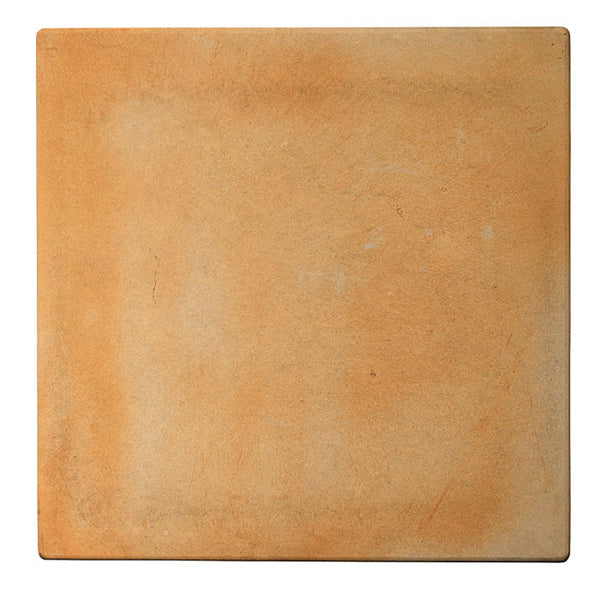

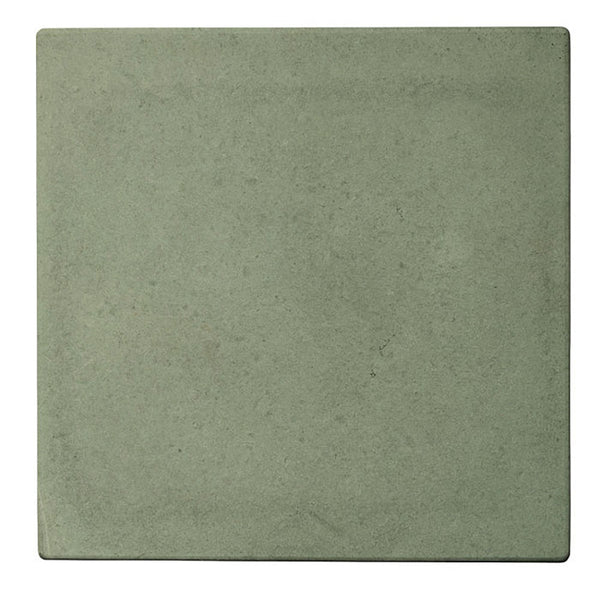

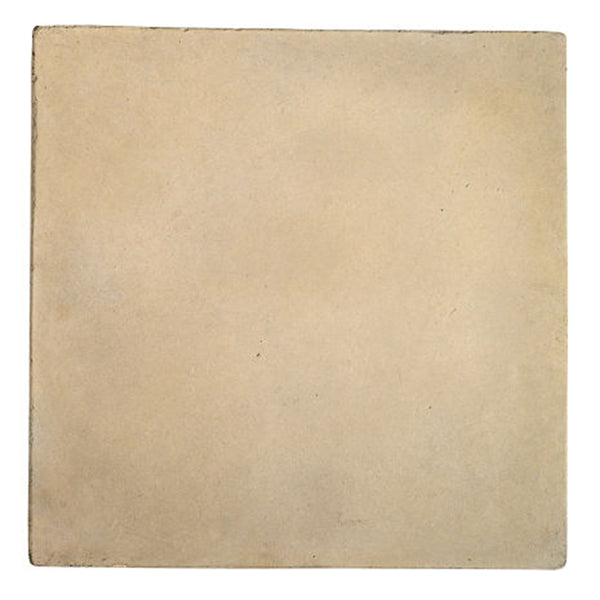

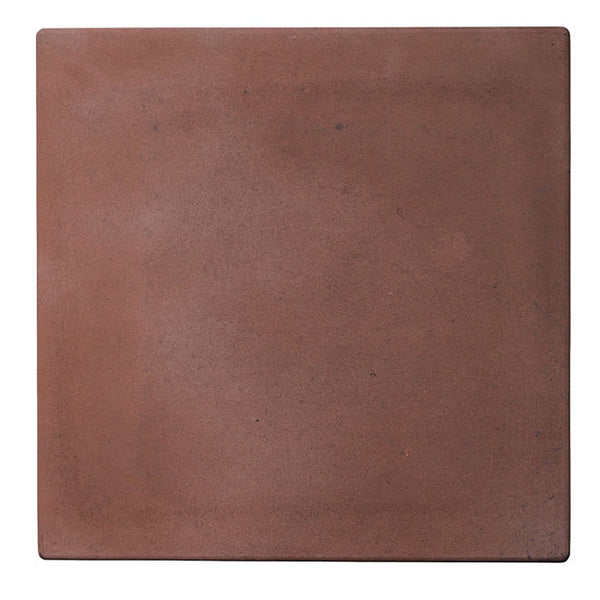

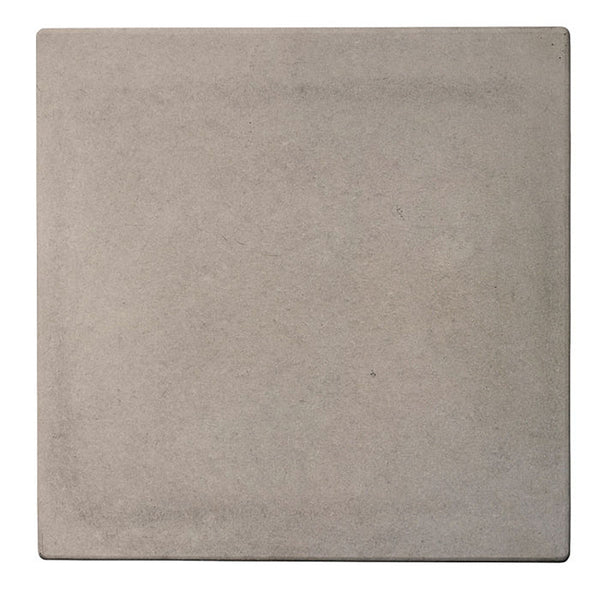

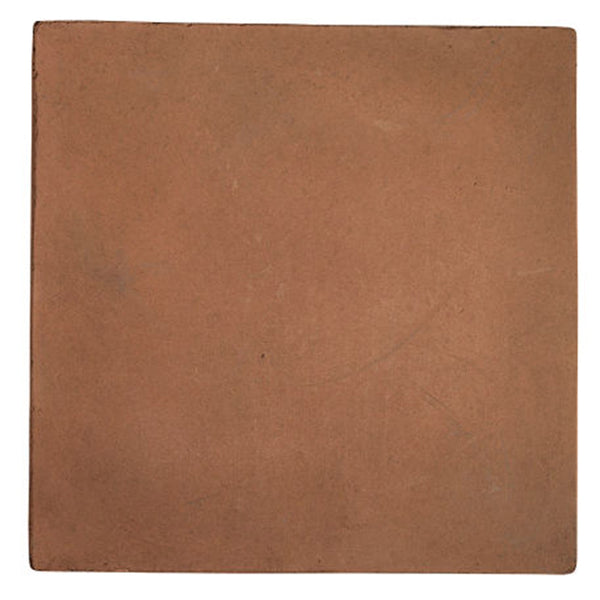

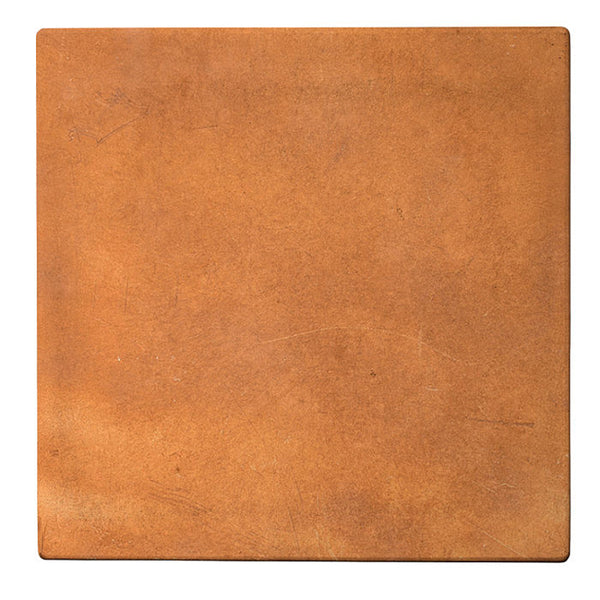

Thin brick uses all of our concrete color options. 38 of them are stocked as samples. Order the ones you are considering and hold them against the room.

Custom is the standard

Two pieces or ten thousand

We started as a custom shop and we still run that way. Send a chip. Bring a swatch. Show us what you're building. We develop custom colors, custom shapes, and custom color matches, and run a sample before any production commitment.

  • Custom Color
  • Custom Shape
  • Historical Match
  • Color Match
  • Two Pieces
  • Two Pallets

The material

Built to outlast the install

The craft is in the maker's hands. The performance is in the concrete body. ARTO publishes CSI 3-Part specifications and installation guides so architects and designers can specify with confidence.

  • The mix

    Fiber-Reinforced Concrete

    Hand cast in our Gardena facility from durable, fiber-reinforced concrete. Every piece is cast by hand, so the face and the thickness vary across a run.

  • The color

    Concrete Color Palette

    Available in most of our concrete colors and textures. Thirty eight colors are stocked as samples. Some items may not be available in every color or texture.

  • The documentation

    Specs and Downloads

    Two CSI 3-Part master specifications cover concrete thin brick, one for wall veneer and one for flooring. Installation, sealing, efflorescence, and cleaning guides are in the technical library.

  • The application

    Interior and Exterior

    Walls and floors, indoors and out. Rated for pedestrian and vehicular use, and durable enough for freezing and thawing climates.

  • The industry

    Industry Standards

    Member of TCNA, NTCA, and CTDA. Custom products are available with project-specific testing on request.

  • The decision

    Sampling

    Always order a sample before you commit. What you see on a screen is not what your hand will know in the room. Samples ship from our Gardena facility.

Material truth

Rustic Elegance

Rough and refined at the same time. A handcrafted edge where no two pieces are exactly alike. A surface that ages with the room, in a palette of thirty eight colors.

It is not a marketing phrase. It is a material truth. Far from perfect, and that is the whole point.
